CUI DevicesUnited States

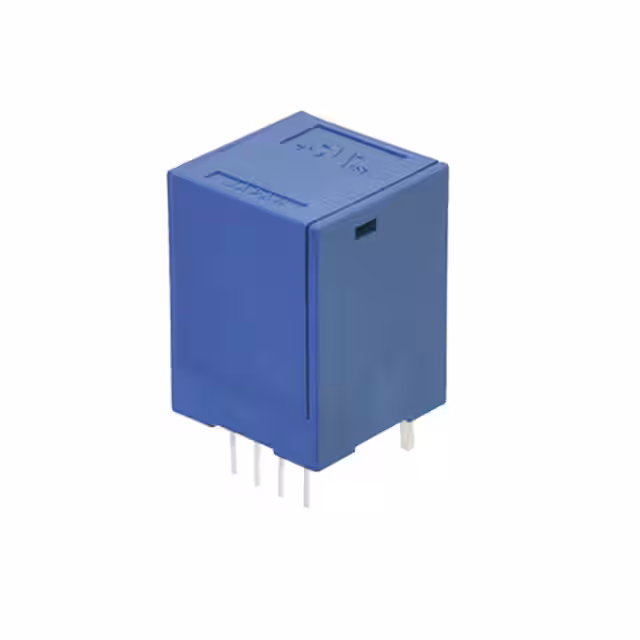

CURRENT SENSOR,OPEN LOOP,20A,+5V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Sensing | 20A |
| Current - Supply (Max) | 25mA |
| Number of Channels | 1 |
| Voltage - Supply | 4.75V ~ 5.25V |
| AC and DC characteristics | |
| Accuracy | ±2.2% |
| Frequency | DC ~ 40kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -10°C~75°C |
| Package | Tray |
| Package / Case | Module |
| Other | |
| Base Product Number | CS2005 |
| For Measuring | AC |
| Linearity | ±0.5% |
| Mfr | CUI Devices |
| Output | Ratiometric, Voltage |
| Polarization | Bidirectional |
| Product Status | Active |
| Response Time | 7µs |
| Sensitivity | - |
| Sensor Type | Open Loop |
| Series | CSXX05B |
