Triad MagneticsUnited States

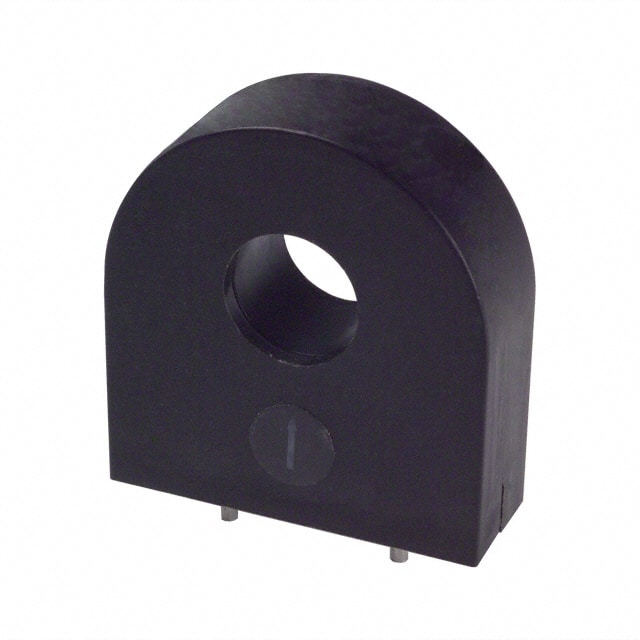

CURR SENSE XFMR 70A T/H
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 70 A |
| Current Ratio | 300:1 |
| AC and DC characteristics | |
| Frequency Range | 20kHz ~ 200kHz |
| Environment and package | |
| Height - Seated (Max) | 1.225" (31.12mm) |
| Mounting Type | Through Hole |
| Package | Bulk |
| Size / Dimension | 1.075" L x 0.400" W (27.31mm x 10.16mm) |
| Other | |
| DC Resistance (DCR) | 12.4Ohm Max |
| ET (Volt-Time) | 6000VµS |
| Inductance | 130 mH |
| Mfr | Triad Magnetics |
| Product Status | Active |
| Ratings | - |
| Series | CST |
| Termination Style | PC Pin |
| Turns Ratio - Primary:Secondary | - |
| Type | Non-Invasive (Solid Core) |
| Weight | - |
