Cal Test ElectronicsUnited States

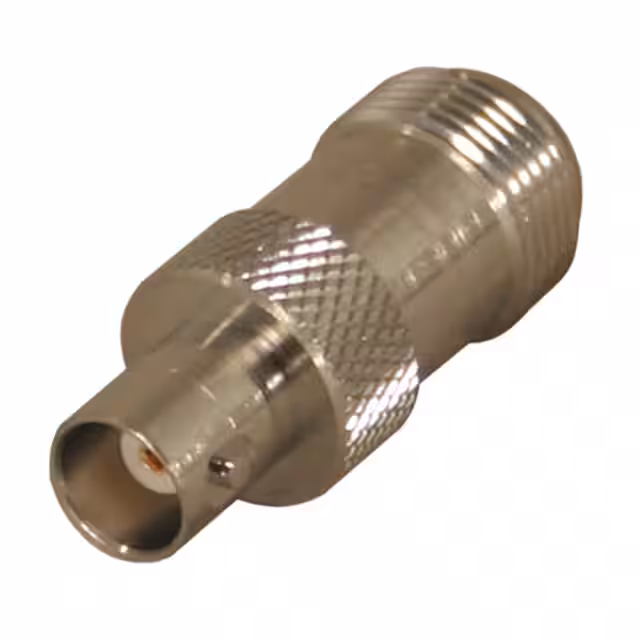

CONN ADAPT BNC JACK TO N JACK
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 10 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C~155°C |
| Package | Bulk |
| Other | |
| Adapter Series | BNC to N |
| Adapter Type | Jack to Jack |
| Base Product Number | - |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper; Brass |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | N Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock, Threaded |
| Features | - |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | 0.10dB |
| Mating Cycles | - |
| Mfr | Cal Test Electronics |
| Product Status | Obsolete |
| Series | - |
| Style | Straight |
Documents
No documents are linked to this part yet.
