Central TechnologiesUnited States

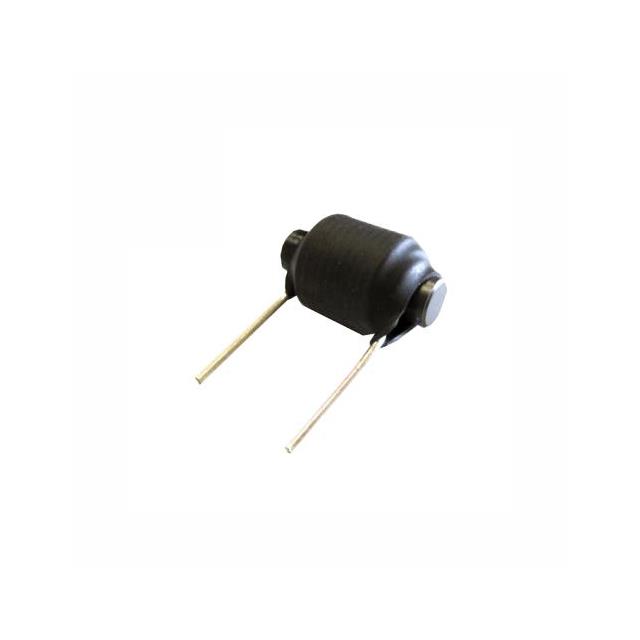

50UH FILTER INDUCTOR
All alternatives
View full reportTechnical parameters
Key specs
Inductance50 µH
Rated current11 AMax
Saturation current10 AMax
DC resistance25 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 11 A |
| Current - Saturation (Isat) | 10A |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 1 kHz |
| Environment and package | |
| Height - Seated (Max) | 1.375" (34.93mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Package | Bulk |
| Package / Case | Radial, Horizontal Cylinder |
| Size / Dimension | 0.935" Dia (23.75mm) |
| Supplier Device Package | Radial |
| Other | |
| DC Resistance (DCR) | 25mOhm Max |
| Features | - |
| Inductance | 50 µH |
| Material - Core | - |
| Mfr | Central Technologies |
| Product Status | Active |
| Q @ Freq | - |
| Ratings | - |
| Series | CTHRF |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Wirewound |
