FREESOR(飞轩)China

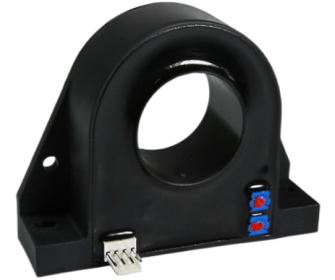

A new type of current sensor based on the principle of magnetic modulation has good stability of small current, high insulation between primary and secondary, and strong anti-interference ability. After signal conversion, it can be directly collected and accepted by PLC, secondary instrument and other acquisition devices, and is used in signal system, line detection, leakage monitoring system, current difference measurement.
All alternatives

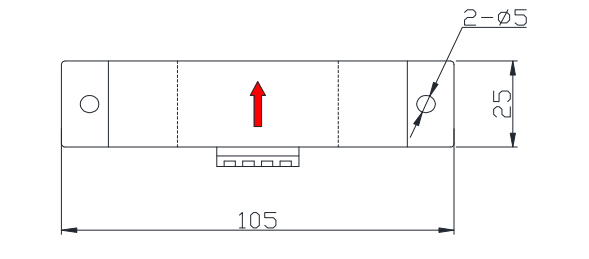

View full reportTechnical parameters
| Power | |
|---|---|
| 电源电压 Vcc Supply voltage | ± 12 ...15V (±5%) |
| 绝缘电压 V Insulation voltage | 在原边与副边电路之间: 50Hz, 1min, 3KV Between the primary and secondary side circuits: 50Hz, 1min, 3KV |
| 输出电压 V O Output voltage | 输出额定值±5V，对应原边额定电流 The output rating is ± 5V, corresponding to the rated current of the primary side |
| 额定电流 I PN （mA） Rated primary current | 10 | 20 | 50 | 100 |
| AC and DC characteristics | |
| 失调电压 V off Offset voltage | 当原边电流 I N =0 时，最大值：±30mV When the primary current I N =0, the maximum value is ± 30mV |
| 精度 A e A ccuracy | ±1% |
| Environment and package | |
| 工作温度 T A Ambient operating temperature | -10℃ …+85℃ |
| 贮存温度 T Ambient storage temperature | -40℃ …+85℃ |
| Other | |
| 反应时间 T res Response time | ≤ 20mS |
| 测量范围 I P （mA） Measuring range | 0...±20 | 0...±40 | 0...±100 | 0...±200 |
| 温漂 V oT T emperature drift | 最大值：±1mV/℃ Maximum value: ± 1mV/ ℃ |
| 线性度 Le Linearity | ≤ ±1% |
| 负载电阻 R L Load resistance | >2KΩ |
