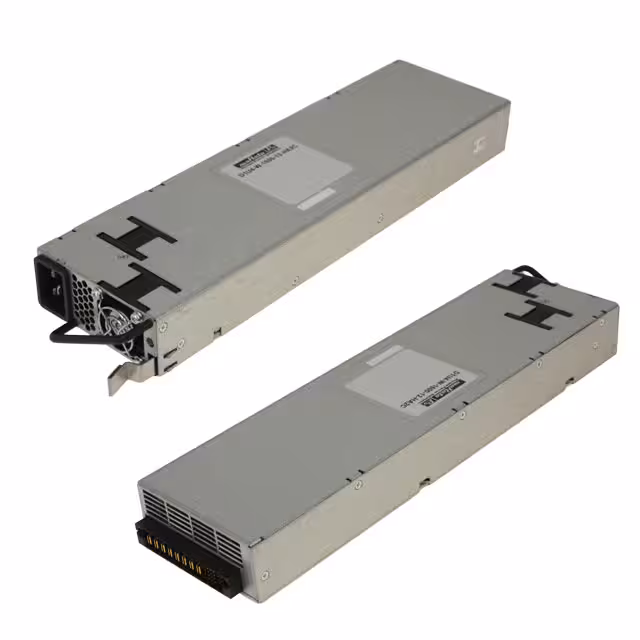

AC/DC CONVERTER 54V 1600W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage54 V
Output current30 AMax
Power1.6 kWMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 30 A |
| Power (Watts) | 1600W |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 54V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Rack Mount |
| Operating Temperature | -40°C~70°C |
| Package | Box |
| Size / Dimension | 14.00" L x 4.00" W x 1.60" H (355.6mm x 101.6mm x 41.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, cCSAus, CE, TUVgs |
| Base Product Number | D1U4-W |
| Efficiency | 90% |
| Features | Hot Swappable, I²C™ Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input |
| Mfr | Murata Power Solutions Inc. |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | D1U4-W-1600 (1600W) |
| Type | Front End |
