Vishay SferniceUnited States

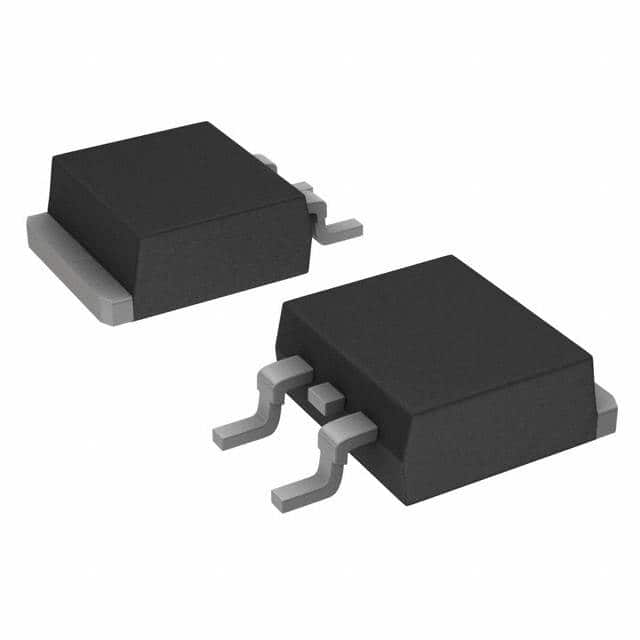

RES 0.015 OHM 1% 20W TO263
All alternatives
View full reportTechnical parameters
Key specs
Resistance15 mΩ
Tolerance1 %
Power20 W
Temperature coefficient1.1 kppm/°C
| Power | |
|---|---|
| Power (Watts) | 20W |
| Environment and package | |
| Height - Seated (Max) | 0.189" (4.80mm) |
| Operating Temperature | -55°C~155°C |
| Package | Tube |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Size / Dimension | 0.398" L x 0.346" W (10.10mm x 8.80mm) |
| Supplier Device Package | TO-263 (D²Pak) |
| Temperature Coefficient | ±1100ppm/°C |
| Other | |
| Composition | Thick Film |
| Failure Rate | - |
| Features | Automotive AEC-Q200, Moisture Resistant, Non-Inductive |
| Mfr | Vishay Sfernice |
| Number of Terminations | 2 |
| Product Status | Active |
| Ratings | AEC-Q200 |
| Resistance | 15 mOhms |
| Series | D2TO20 |
| Tolerance | ±1% |
