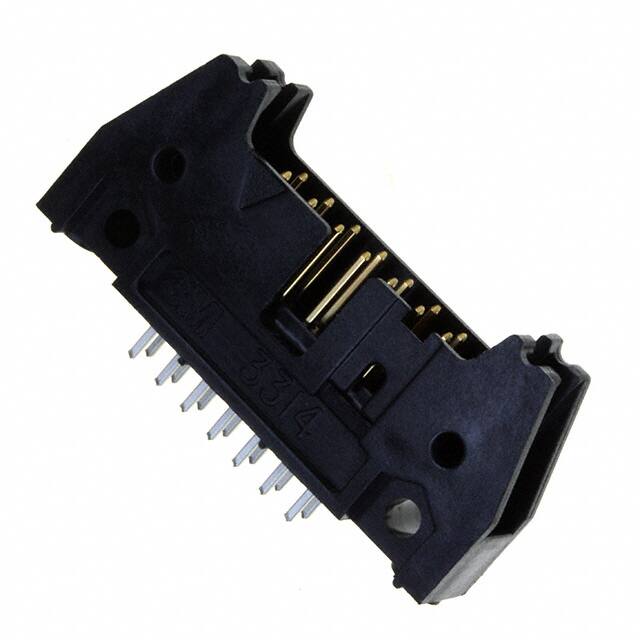

CONN HEADER VERT 14POS 2.54MM
All alternatives
View full reportTechnical parameters
Key specs
Positions14
Rows2
Pitch2.54 mm
GenderMale
Current rating1.75 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1.75A |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.680" (17.27mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Tray |
| Other | |
| Applications | - |
| Base Product Number | D3314 |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.112" (2.84mm) |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot, Mounting Flange |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mfr | 3M |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | 0.652" (16.56mm) |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | D3000 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
