Burr BrownUnited States
DAC, PARALLEL, 8 BITS INPUT
All alternatives
View full reportTechnical parameters
Key specs
Resolution12 bit
Channels2
InterfaceParallel
Output typeCurrent
Supply voltage≥ 5 V
| Power | |
|---|---|
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| AC and DC characteristics | |
| Settling Time | 800ns |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |

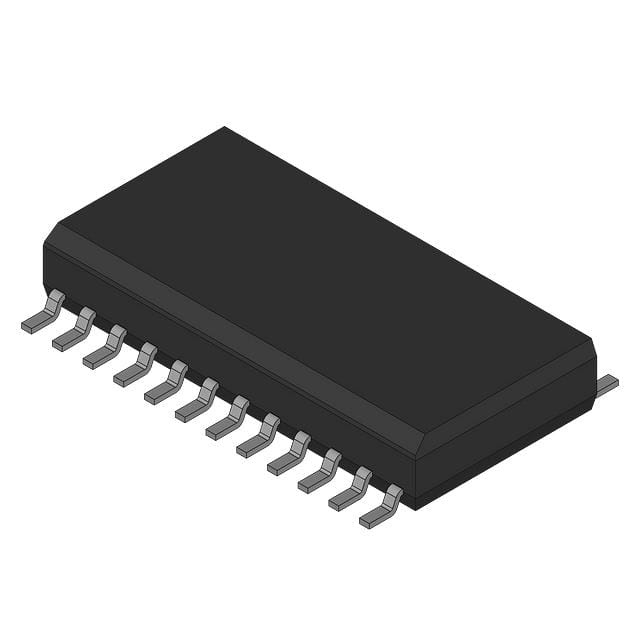

| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Other | |
| Architecture | Multiplying DAC |
| Data Interface | Parallel |
| Differential Output | No |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Mfr | Burr Brown |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Output Type | Current - Unbuffered |
| Product Status | Obsolete |
| Reference Type | External |
| Series | - |
