Burr BrownUnited States
DAC7801 DUAL MONOLITHIC CMOS 12-
All alternatives
View full reportTechnical parameters
Key specs
Resolution12 bit
Channels2
InterfaceParallel
Output typeCurrent
Supply voltage≥ 5 V
| Power | |
|---|---|
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| AC and DC characteristics | |
| Settling Time | 800ns |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |

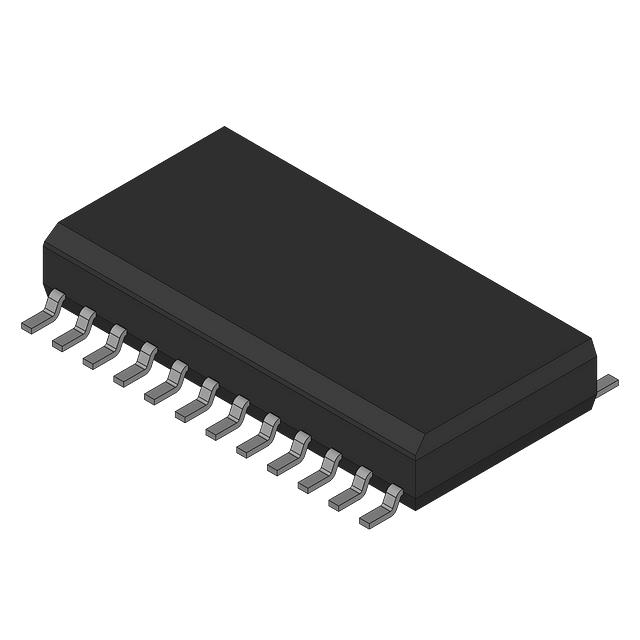

| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Other | |
| Architecture | Multiplying DAC |
| Data Interface | Parallel |
| Differential Output | No |
| DigiKey Programmable | Not Verified |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Manufacturer | Burr Brown |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Output Type | Current - Unbuffered |
| Packaging | Bulk |
| Part Status | Active |
| Reference Type | External |
| Series | - |
Documents
No documents are linked to this part yet.
