Diodes IncorporatedUnited States

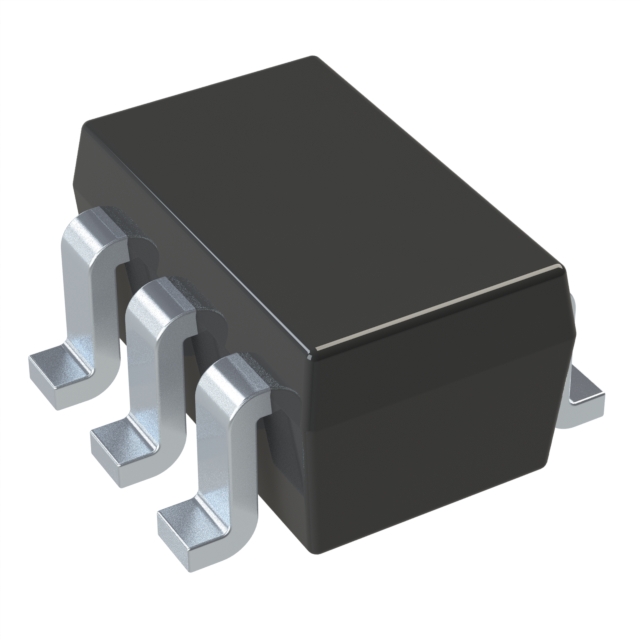

DCX124EU-7
Bipolar Transistor Arrays, Pre-BiasedTRANS NPN/PNP PREBIAS SOT363
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500nA |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 200mW |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 56 @ 5mA, 5V |
| Frequency - Transition | 250MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Other | |
| Base Product Number | DCX124 |
| Manufacturer | Diodes Incorporated |
| Packaging | Tape & Reel (TR) Cut Tape (CT) |
| Part Status | Discontinued at Digi-Key |
| Resistor - Base (R1) | 22kOhms |
| Resistor - Emitter Base (R2) | 22kOhms |
| Series | - |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
