DIOO(帝奥微)China
The DIO2601 (single) is an operational amplifier with very low noise, high voltage, and low power. The DIO2601 has a high gain-bandwidth product of 3.5 MHz, a slew rate of 2.5 V/μs, and a quiescent current of 0.75 mA/amplifier at 4.5 V typically. The DIO2601 is designed to provide optimal performance in low voltage and low noise systems. All these chips provide rail-to-rail output swing into heavy loads. The input common-mode voltage range includes ground, and the maximum input offset voltage is 3.5 mV for DIO2601. It is specified over the extended industrial temperature range -40°C to 125°C. The operating range is from 4.5 V to 36 V.
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|

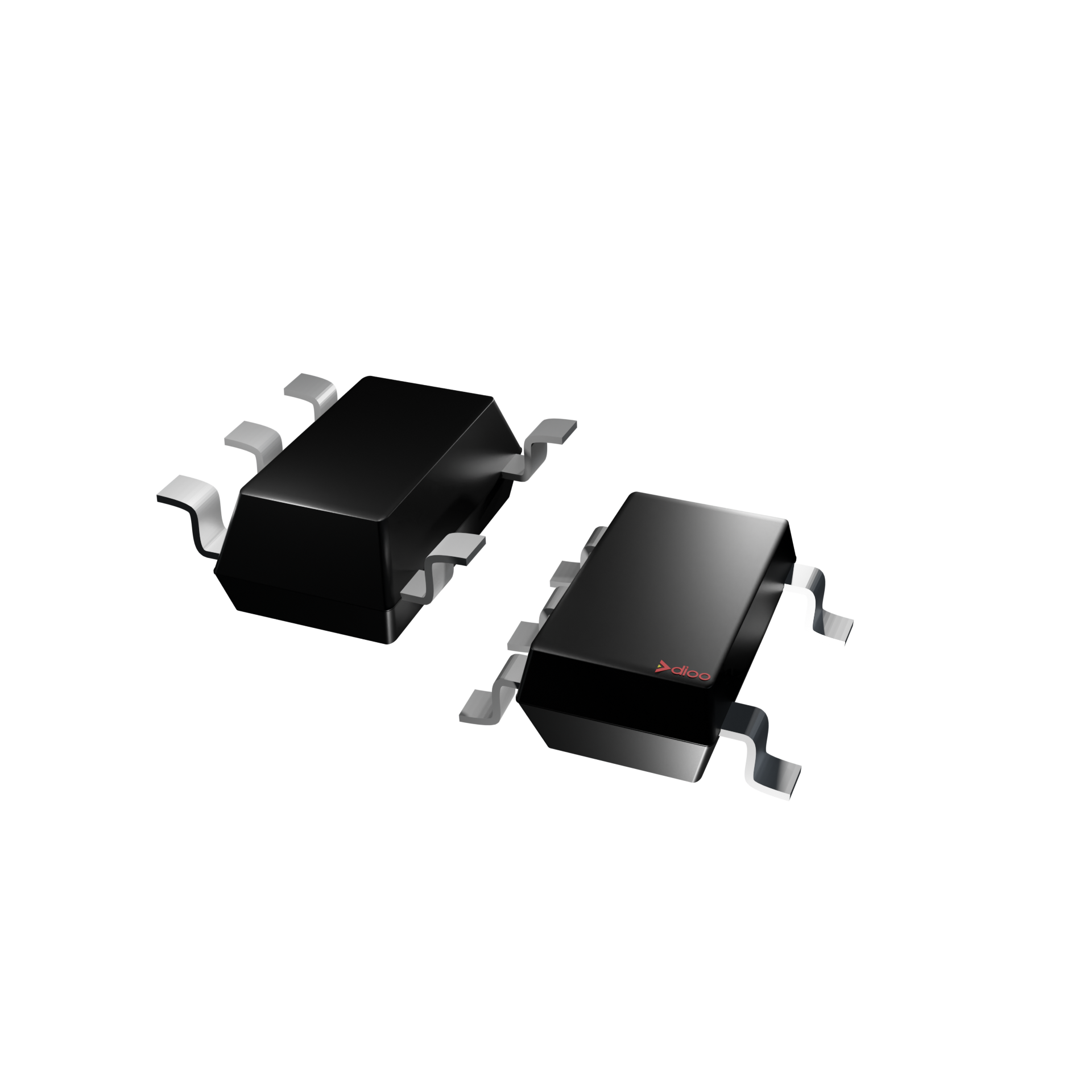

| 封装/Packages | SOT23-5,SOIC-8 |
| Other | |
| 参数1 | 4.5 |
| 参数10 | Out |
| 参数11 | 3.5MHz, Rail-to-Rail CMOS Operational Amplifier |
| 参数2 | 950 |
| 参数3 | 1 |
| 参数4 | 3.5 |
| 参数5 | 2.5 |
| 参数6 | 3.5 |
| 参数7 | 10 |
| 参数8 | OPA141,SGM8291,TLC071 |
| 参数9 | 36 |
