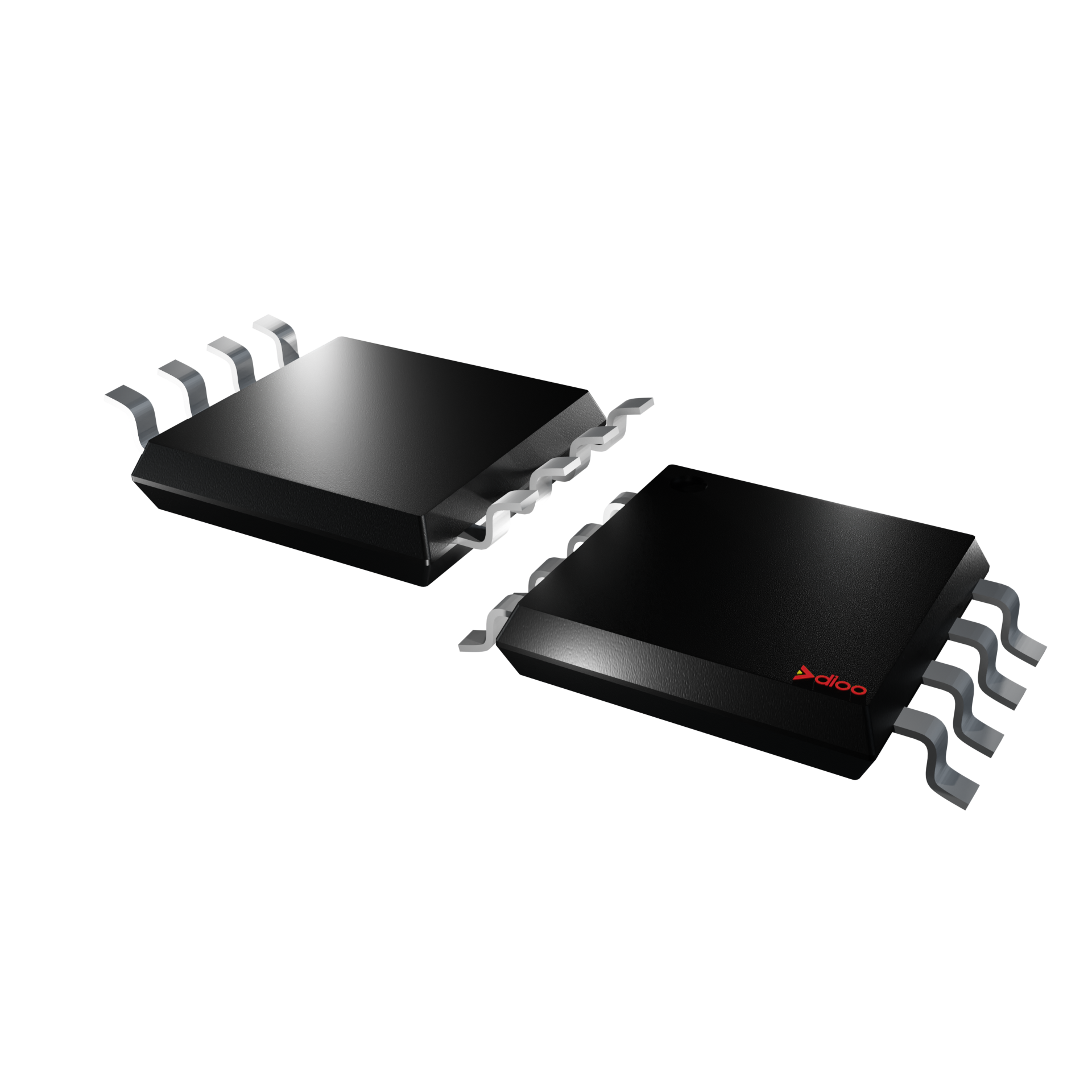

DIO2602

The DIO2602 (dual) is an operational amplifier with very low noise, high voltage, and low power. The DIO2602 has a high gain-bandwidth product of 3.5 MHz, a slew rate of 2.5 V/μs, and a quiescent current of 0.75 mA/amplifier at 4.5 V typically. The DIO2602 is designed to provide optimal performance in low voltage and low noise systems. All these chips provide rail-to-rail output swing into heavy loads. The input common-mode voltage range includes ground, and the maximum input offset voltage is 3.5 mV for DIO2602 It is specified over the extended industrial temperature range -40°C to 125°C. The operating range is from 4.5 V to 36 V.
