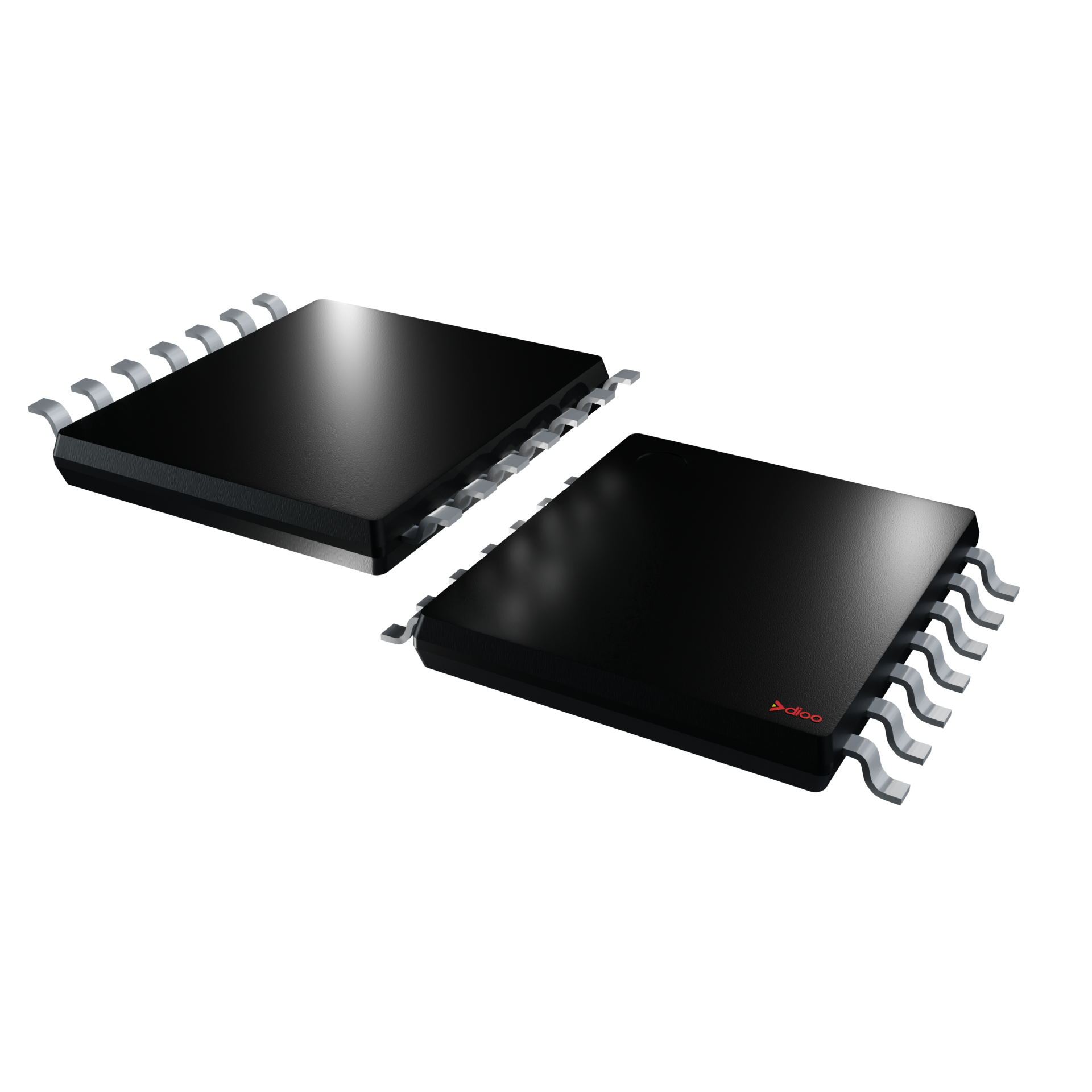

DIO2704

The DIO2704 (quad) is an amplifier with very low noise, low voltage, and low power. The DIO2704 has a high gain-bandwidth product of 6 MHz, a slew rate of 20 V/μs, and a quiescent current of 1.4 mA/amplifier at 4.5 V typically. The DIO2704 is designed to provide optimal performance in low voltage and low noise systems. All these chips provide rail-to-rail output swing into heavy loads. The input common-mode voltage range includes ground, and the maximum input offset voltage is 3.5 mV for the DIO2704. It is specified over the extended industrial temperature range -40°C to 125°C. The operating range is from 4.5 V to 32 V.
