DIOO(帝奥微)China

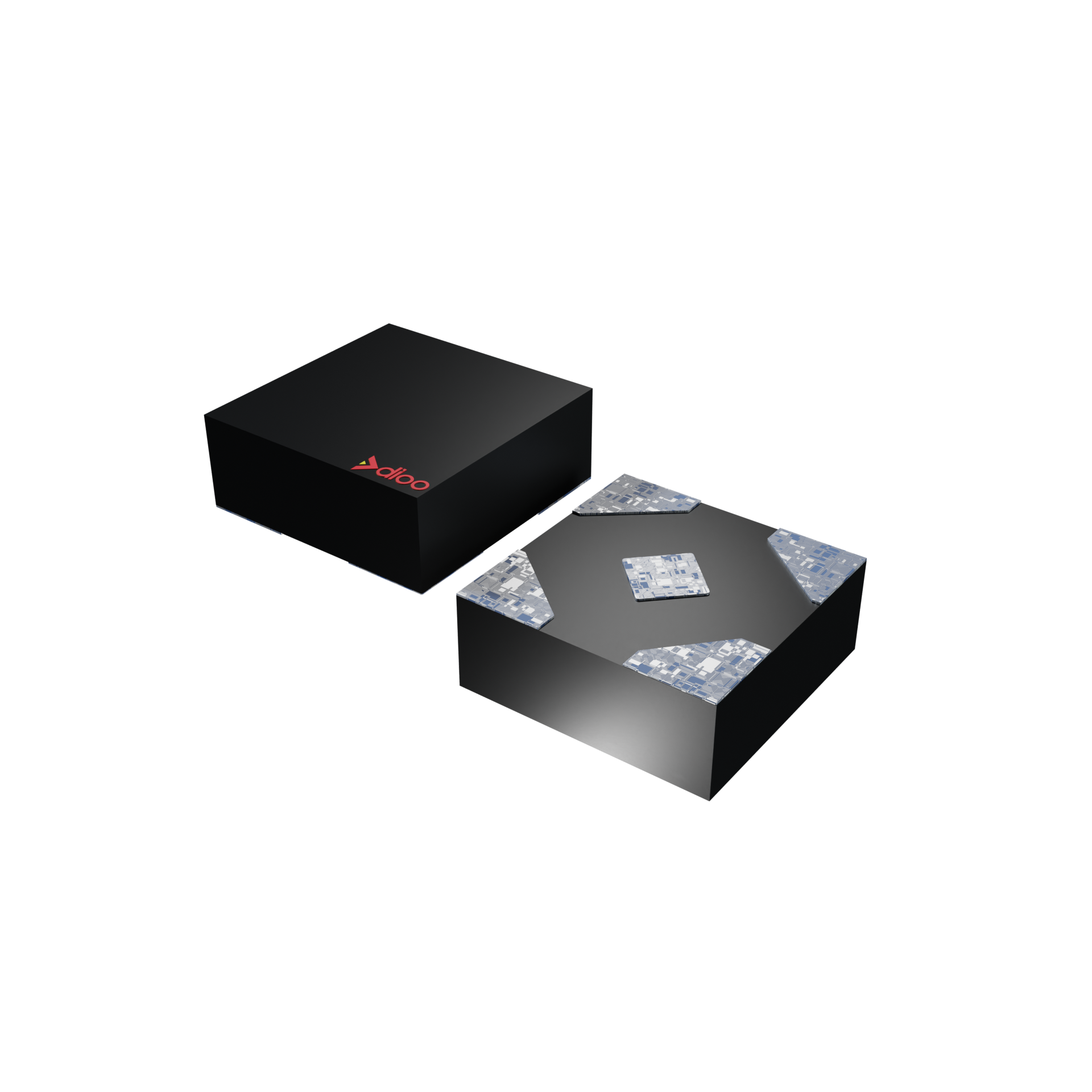

The DIO7910Q is a high-accuracy, low-noise, high-speed, high PSRR, and low-dropout CMOS Linear regulator with high ripple rejection. The devices offer a new level of cost-effective performance in cellular phones, laptop and notebook computers, and other portable devices. The DIO7910Q has the fold-back maximum output current that depends on the output voltage. So the current limit function short circuit protection and an output current limiter. The device is available in DFN1*1-4, SOT23-5, andDFN0.8*0.8-4 packages.
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| 封装/Packages | DFN1*1-4,DFN0.8*0.8-4,SOT23-5 |
| Other | |
| 参数1 | 1.6 |
| 参数10 | 40 |
| 参数11 | 70 |
| 参数12 | ±2% |
| 参数2 | 5.5 |
| 参数3 | 1.2 |
| 参数4 | / |
| 参数5 | 600 |
| 参数6 | 25 |
| 参数7 | 0.3 |
| 参数8 | 75 |
| 参数9 | 0.02%/V |
