Lascar ElectronicsUnited Kingdom

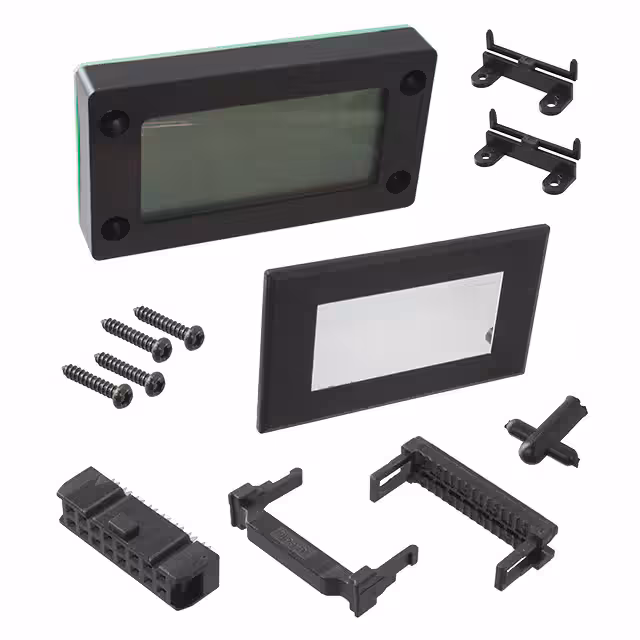

PROCESS METER LCD PNL MOUNT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 4.5 ~ 5.5VDC |
| Environment and package | |
| Display Characters - Height | 0.748" (19.00mm) |
| Mounting Type | Panel Mount |
| Operating Temperature | 0°C~50°C |
| Package | Box |
| Panel Cutout Dimensions | Rectangular - 72.00mm x 40.00mm |
| Other | |
| Base Product Number | - |
| Display Type | LCD - Black Characters, Green/Red Backlight |
| Features | - |
| Ingress Protection | - |
| Measuring Range | ±200mVDC |
| Measuring Type | Voltage |
| Mfr | Lascar Electronics |
| Number of Characters Per Row | 3.5 |
| Output Type | Reference |
| Product Status | Active |
| Series | DPM |
| Termination Style | PC Pin |
| Type | Voltmeter |
| Weight | - |
