TDK CorporationJapan

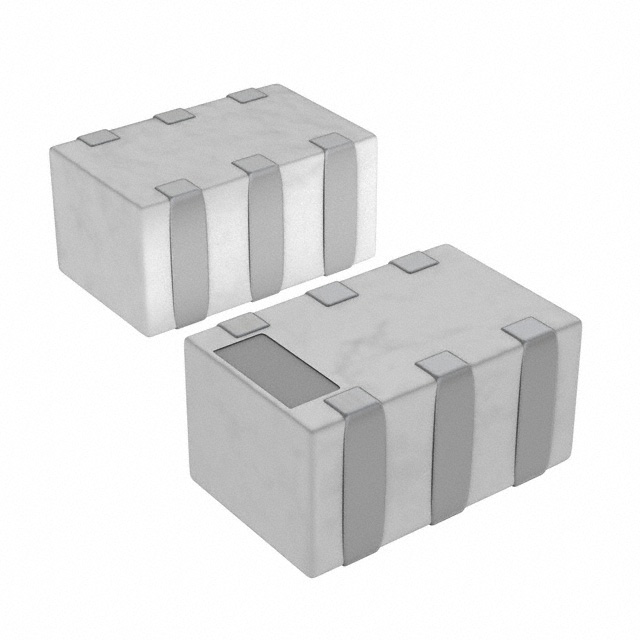

RF DIPLEXER 892MHZ/1.85GHZ 0805
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency Bands (Low / High) | 824MHz ~ 960MHz / 1.71GHz ~ 1.99GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 0805 (2012 Metric), 6 PC Pad |
| Other | |
| High Band Attenuation (min / max dB) | 20.00dB / - |
| Low Band Attenuation (min / max dB) | 21.00dB / - |
| Mfr | TDK Corporation |
| Product Status | Obsolete |
| Return Loss (Low Band / High Band) | 10.0dB / 10.0dB |
| Series | DPX |
| Type | Diplexer |
