Texas InstrumentsUnited States

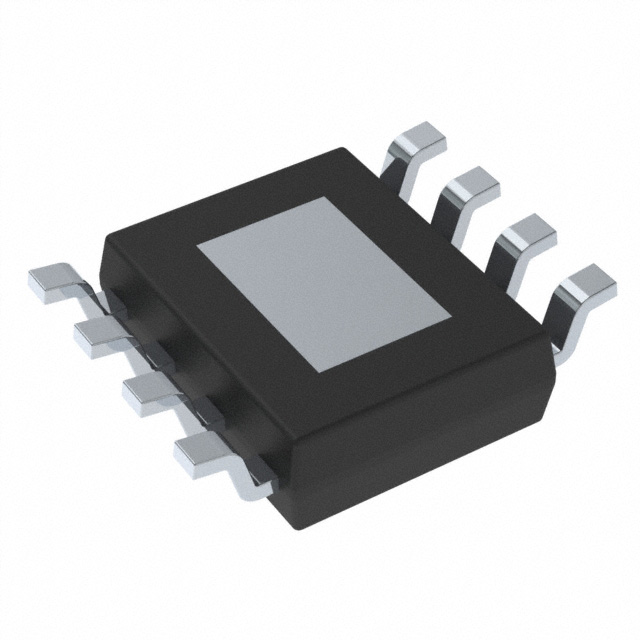

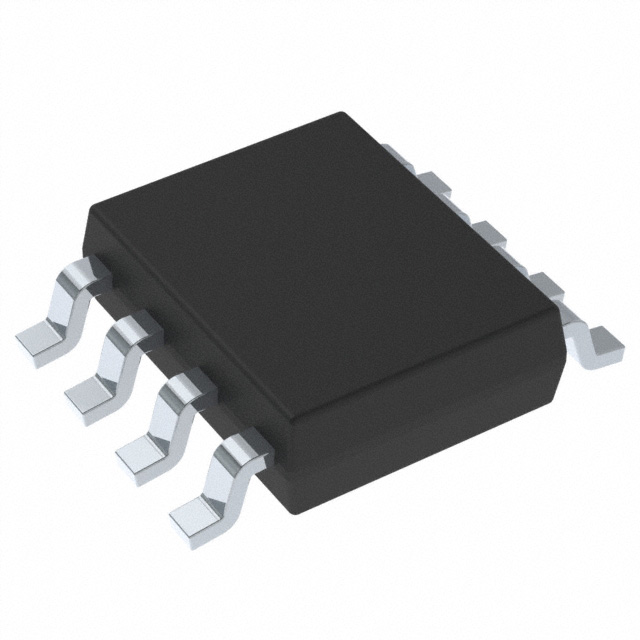

IC MOTOR DRVR UNIPLR 8SO PWRPAD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 3.6A |
| Voltage - Load | 6.5V ~ 45V |
| Voltage - Supply | 0V ~ 5.5V |
| AC and DC characteristics | |
| Step Resolution | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Other | |
| Applications | DC Motors, General Purpose, Stepper Motors |
| Base Product Number | DRV8870 |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Mfr | Texas Instruments |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Unipolar |
| Output Configuration | Half Bridge (2) |
| Product Status | Active |
| Series | - |
| Technology | NMOS |
