DS1135Z-15/T&R
Analog Devices Inc./Maxim IntegratedUnited States

DS1135Z-15/T&R

ObsoleteDelay Lines

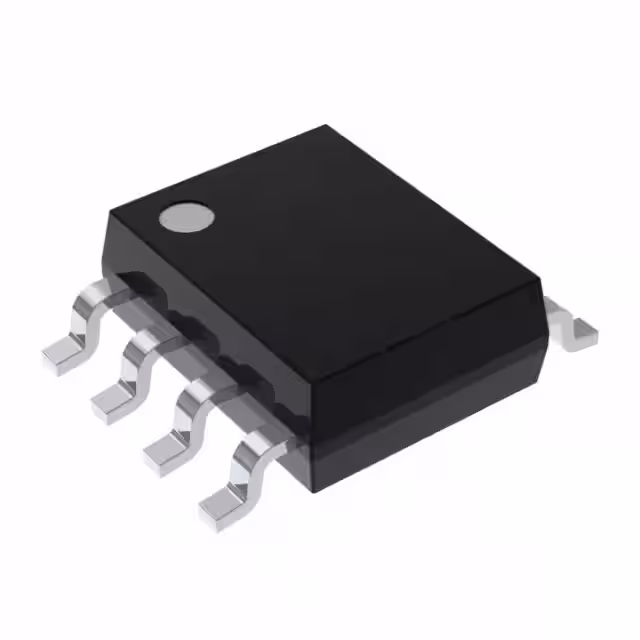

IC DELAY LINE 15NS 8SOIC

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage - Supply4.75V ~ 5.25V
AC and DC characteristics
Available Total Delays15ns
Delay to 1st Tap15ns
Number of Independent Delays3
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~85°C
PackageTape & Reel (TR)
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
Other
Base Product NumberDS1135
FunctionMultiple, NonProgrammable
MfrAnalog Devices Inc./Maxim Integrated
Product StatusObsolete
Series-

Documents

No documents are linked to this part yet.
