Analog Devices Inc./Maxim IntegratedUnited States

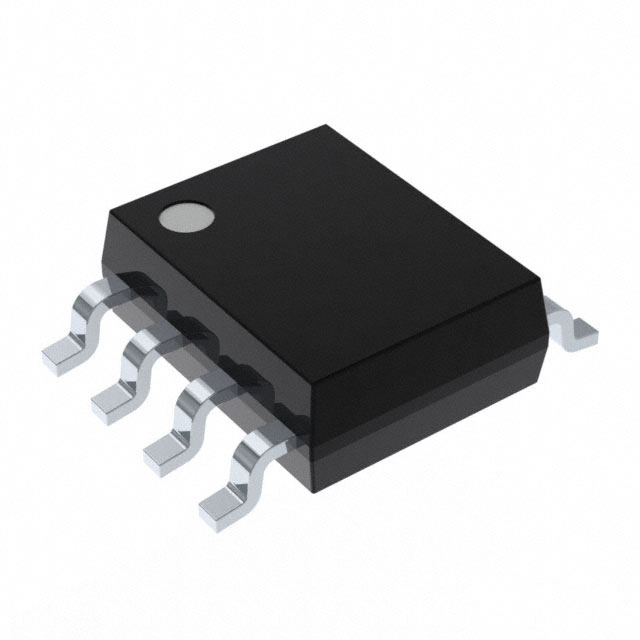

IC RTC CLK/CALENDAR I2C 8SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Timekeeping (Max) | 200µA @ 5V |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Supply, Battery | 2V ~ 3.5V |
| Environment and package | |
| Memory Size | 56B |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Base Product Number | DS1307 |
| Date Format | YY-MM-DD-dd |
| DigiKey Programmable | Not Verified |
| Features | Leap Year, NVSRAM, Square Wave Output |
| Interface | I²C, 2-Wire Serial |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Product Status | Active |
| Series | - |
| Time Format | HH:MM:SS (12/24 hr) |
| Type | Clock/Calendar |
