IXYSUnited States

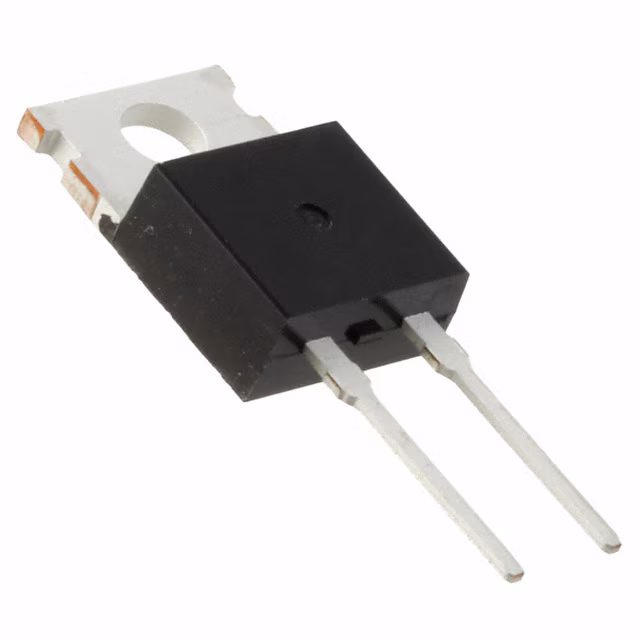

DIODE GEN PURP 1.2KV 17A TO220AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage1.2 kV
Average rectified current17 A
Forward voltage2.15 VMax · 12 A
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 17A |
| Current - Reverse Leakage @ Vr | 750 µA @ 1200 V |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 2.15 V @ 12 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -40°C~150°C |
| Package | Tube |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Other | |
| Base Product Number | DSEI20 |
| Capacitance @ Vr, F | - |
| Diode Type | Standard |
| Mfr | IXYS |
| Product Status | Active |
| Reverse Recovery Time (trr) | 60 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
