IXYSUnited States

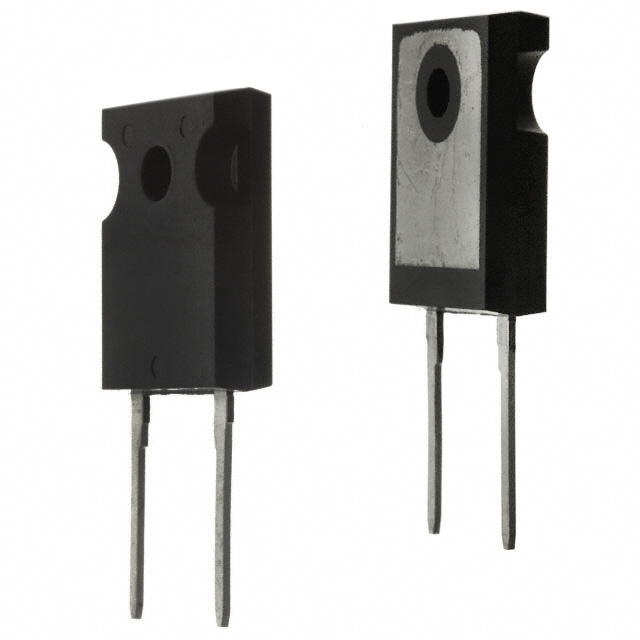

DIODE GEN PURP 600V 60A TO247AD
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage600 V
Average rectified current60 A
Forward voltage1.8 VMax · 70 A
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 60A |
| Current - Reverse Leakage @ Vr | 200 µA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 70 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Package | Tube |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247AD |
| Other | |
| Base Product Number | DSEI60 |
| Capacitance @ Vr, F | - |
| Mfr | IXYS |
| Product Status | Active |
| Reverse Recovery Time (trr) | 50 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Standard |
