STMicroelectronicsSwitzerland

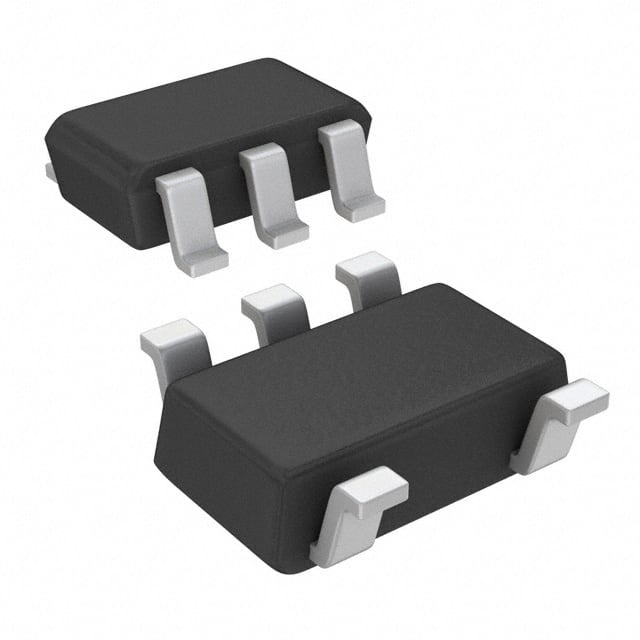

TVS DIODE 5VWM 18VC SOT23-5L
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage5 V
Breakdown voltage6 V
Clamping voltage18 VMax
PolarityBidirectional
| Power | |
|---|---|
| Bidirectional Channels | 1 |
| Current - Peak Pulse (10/1000µs) | 24A (8/20µs) |
| Power Line Protection | No |
| Power - Peak Pulse | - |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 18V |
| Voltage - Reverse Standoff (Typ) | 5V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Other | |
| Applications | Telecom |
| Base Product Number | DSL02 |
| Mfr | STMicroelectronics |
| Product Status | Obsolete |
| Series | DSL |
| Type | Zener |
Documents
No documents are linked to this part yet.
