TRANS PREBIAS PNP 200MW SC75
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500nA |
| Current - Collector (Ic) (Max) | 100 mA |
| Power - Max | 200 mW |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) |

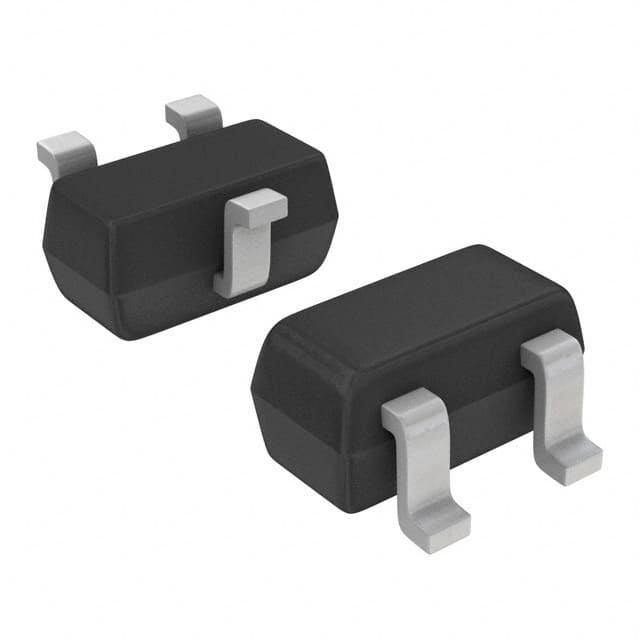

| Package / Case | SC-75, SOT-416 |
| Supplier Device Package | SC-75, SOT-416 |
| Other | |
| Base Product Number | DTA123 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Resistor - Base (R1) | 2.2 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| Series | - |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
