Rohm SemiconductorJapan
PNP, SOT-416, R1≠R2 Leak Absorption Type Digital Transistor (Bias Resistor Built-in Transistor)
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Collector current Io (Ic) [A] | -0.1 |
| Output Current [A] | 0.1 |
| Power Dissipation (PD)[W] | 0.15 |
| Supply voltage VCC 1[V] | -50 |
| Environment and package | |

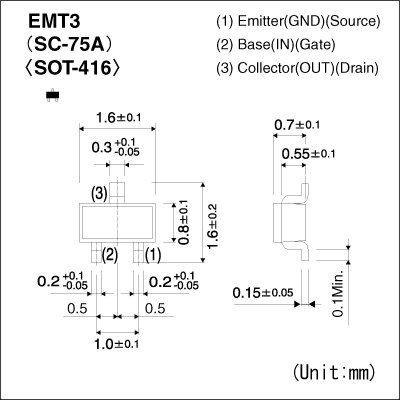

| JEITA Package | SC-75A |
| Mounting Style | Surface mount |
| Package Code | SOT-416 |
| Package Size [mm] | 1.6x1.6 (t=0.9) |
| Storage Temperature (Max.)[°C] | 150 |
| Storage Temperature (Min.)[°C] | -55 |
| Other | |
| Emitter base Resistance R2 1 [kΩ] | 10 |
| GI hFE | 30 to |
| Input resistance R1 1 [kΩ] | 4.7 |
| Number of terminal | 3 |
| Polarity | PNP |
