Rohm SemiconductorJapan

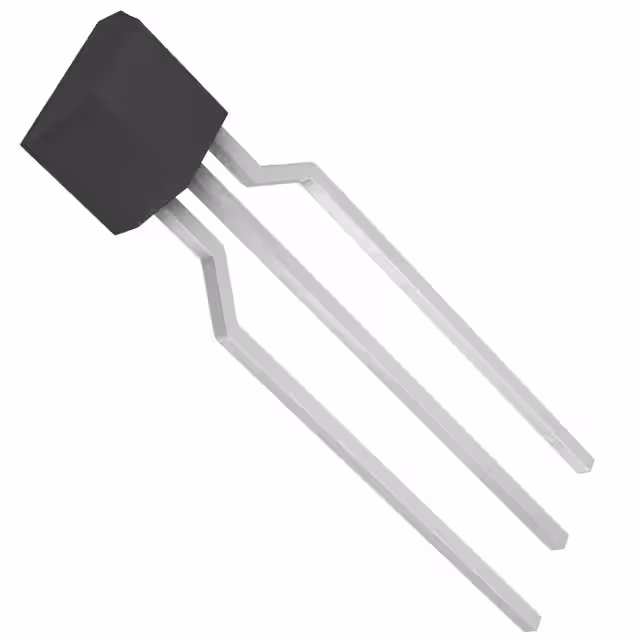

TRANS PREBIAS NPN 300MW SPT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500nA |
| Current - Collector (Ic) (Max) | 50 mA |
| Power - Max | 300 mW |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V |
| Frequency - Transition | 250 MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Package | Tape & Box (TB) |
| Package / Case | SC-72 Formed Leads |
| Supplier Device Package | SPT |
| Other | |
| Base Product Number | DTC114 |
| Mfr | Rohm Semiconductor |
| Product Status | Obsolete |
| Resistor - Base (R1) | 10 kOhms |
| Resistor - Emitter Base (R2) | 10 kOhms |
| Series | - |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
