Adam TechUnited States

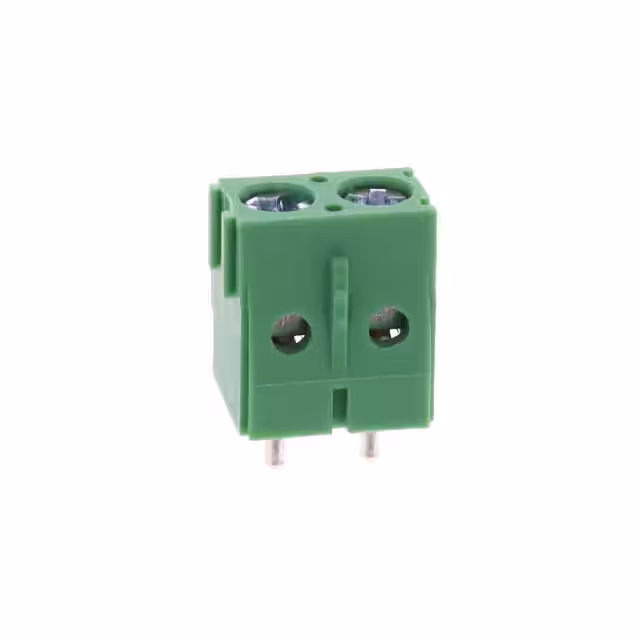

EUROBLOCK 2POS
All alternatives
View full reportTechnical parameters
Key specs
Pitch5 mm
| Power | |
|---|---|
| Current | 10 A |
| Voltage | 300 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~115°C |
| Package | Box |
| Other | |
| Base Product Number | EB133 |
| Clamp Material - Plating | Steel, Stainless |
| Color | Green |
| Contact Material - Plating | Tin |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Mating Orientation | Horizontal with Board |
| Mfr | Adam Tech |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Positions Per Level | 2 |
| Product Status | Active |
| Screw Material - Plating | Steel - Zinc Plated |
| Screw Thread | M2.6 |
| Series | EB |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) |
| Wire Gauge | 12-26 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
