PanasonicJapan

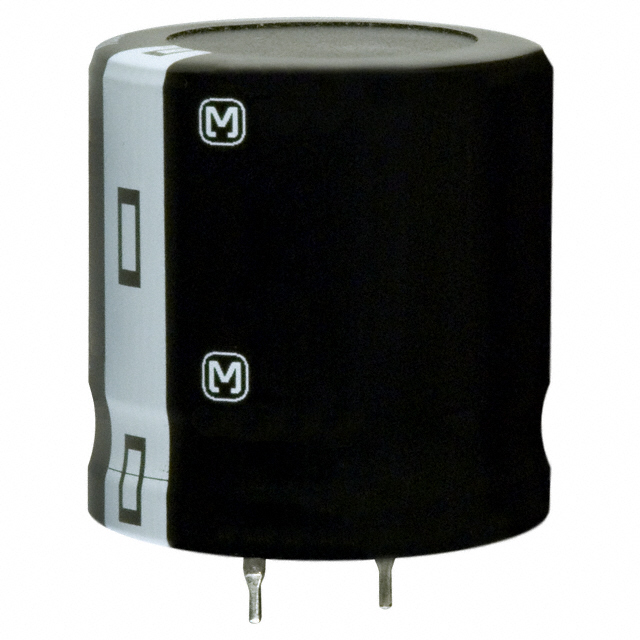

CAP ALUM 15000UF 20% 16V SNAP
All alternatives
View full reportTechnical parameters
Key specs
Capacitance15 mF
Rated voltage16 V
Tolerance20 %
ESR46 mΩMax · 120Hz
Lifetime3 kh105°C
| Power | |
|---|---|
| Voltage - Rated | 16 V |
| AC and DC characteristics | |
| Ripple Current @ High Frequency | 3.68 A @ 100 kHz |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Package | Bulk |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Base Product Number | ECO-S1 |
| Capacitance | 15000 µF |
| ESR (Equivalent Series Resistance) | 46mOhm @ 120Hz |
| Lead Spacing | 0.394" (10.00mm) |
| Mfr | Panasonic Electronic Components |
| Polarization | Polar |
| Product Status | Obsolete |
| Ratings | - |
| Series | TS-HA |
| Tolerance | ±20% |
