Silicon LabsUnited States

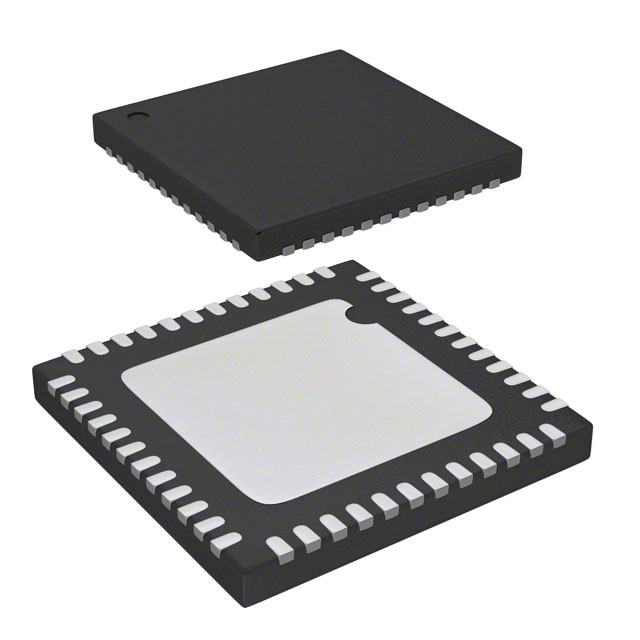

IC RF TXRX+MCU BLUETOOTH 48VFQFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 8.7mA |
| Current - Transmitting | 8.2mA ~ 126.7mA |
| Power - Output | 0dBm |
| Voltage - Supply | 1.85V ~ 3.8V |
| AC and DC characteristics | |
| Frequency | 2.4GHz |
| Environment and package | |
| Memory Size | 128kB Flash, 16kB RAM |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| Other | |
| Base Product Number | EFR32BG1V132 |
| Data Rate (Max) | 2Mbps |
| GPIO | 16 |
| Mfr | Silicon Labs |
| Modulation | 2FSK, 4FSK, GFSK, GMSK, OQPSK |
| Product Status | Obsolete |
| Protocol | Bluetooth v4.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -94dBm |
| Serial Interfaces | I²C, I²S, SPI, UART |
| Series | - |
| Type | TxRx + MCU |
