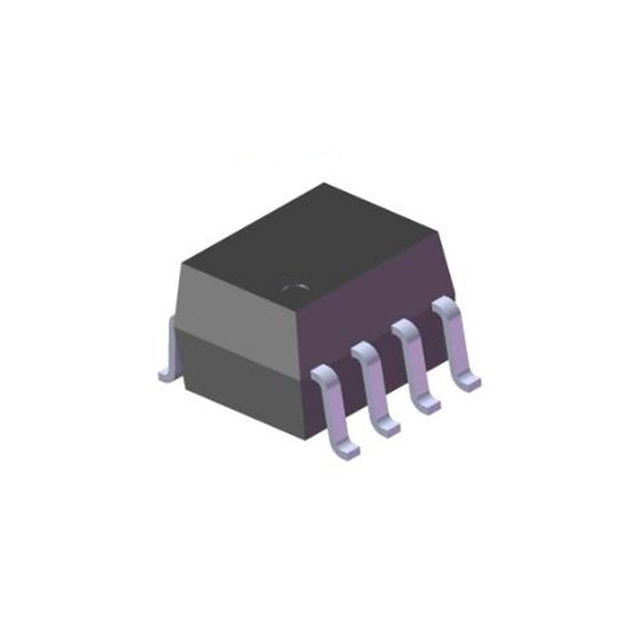

EL0631(TA)-V
Everlight Electronics Co LtdTaiwan, China

EL0631(TA)-V

ActiveLogic Output Optoisolators

OPTOISO 3.75KV 2CH OPEN COL 8SOP

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - DC Forward (If) (Max)20mA
Current - Output / Channel50 mA
Number of Channels2
Voltage - Forward (Vf) (Typ)1.4V
Voltage - Isolation3750Vrms
Voltage - Supply7V
AC and DC characteristics
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Rise / Fall Time (Typ)40ns, 10ns
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 100°C
PackageTape & Reel (TR)
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOP
Other
Base Product NumberEL0631
Common Mode Transient Immunity (Min)10kV/µs
Data Rate10Mbps
Inputs - Side 1/Side 22/0
Input TypeDC
MfrEverlight Electronics Co Ltd
Output TypeOpen Collector
Product StatusActive
Series-

Documents

No documents are linked to this part yet.
