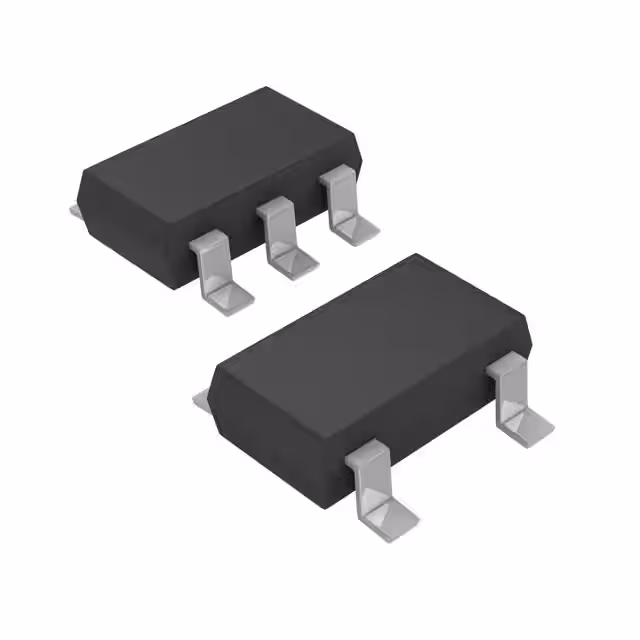

IC OPAMP VFB 1 CIRCUIT TSOT23-5
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage4.5 ~ 19 V
Gain bandwidth product8 MHzTyp
Input offset voltage6 mVTyp
Quiescent current900 µATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 2 nA |
| Current - Output / Channel | 200 mA |
| Current - Supply | 900µA |
| Voltage - Supply Span (Max) | 19 V |
| Voltage - Supply Span (Min) | 4.5 V |
| AC and DC characteristics | |
| -3db Bandwidth | 12 MHz |
| Gain Bandwidth Product | 8 MHz |
| Slew Rate | 12V/µs |
| Voltage - Input Offset | 6 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Other | |
| Amplifier Type | Voltage Feedback |
| Base Product Number | EL5120 |
| Mfr | Renesas Electronics America Inc |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Product Status | Obsolete |
| Series | - |
