Switchcraft Inc.United States

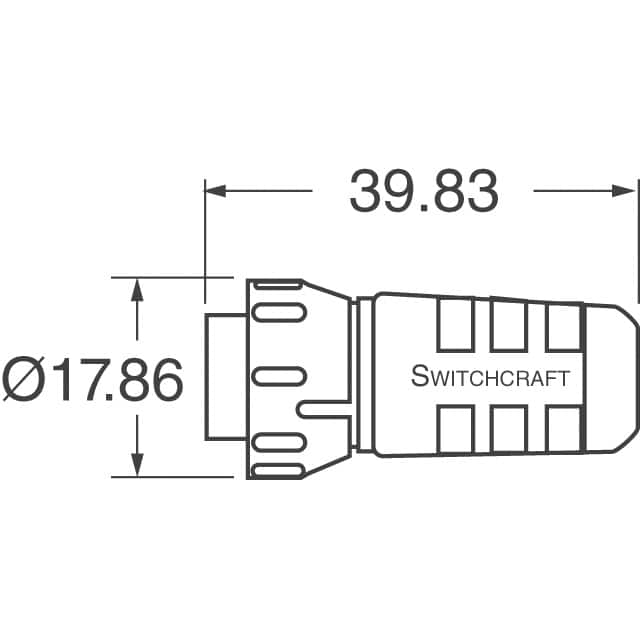

CONN PLUG FMALE 3P GOLD SLDR CUP
All alternatives
View full reportTechnical parameters
Key specs
Positions3
GenderFemale
Current rating7.5 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 250VAC/DC |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C~65°C |
| Package | Bulk |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Other | |
| Applications | General Purpose, Instrumentation, Marine, Medical |
| Backshell Material, Plating | Thermoplastic |
| Base Product Number | - |
| Cable Opening | 0.160" ~ 0.265" (4.06mm ~ 6.73mm) |
| Color | Black |
| Connector Type | Plug, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Ingress Protection | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
| Insert Material | Elastomer |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Switchcraft Inc. |
| Number of Positions | 3 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Product Status | Obsolete |
| Series | EN3® |
| Shell Finish | - |
| Shell Material | Thermoplastic |
| Shielding | Unshielded |
| Termination | Solder Cup |
