MDDGermany

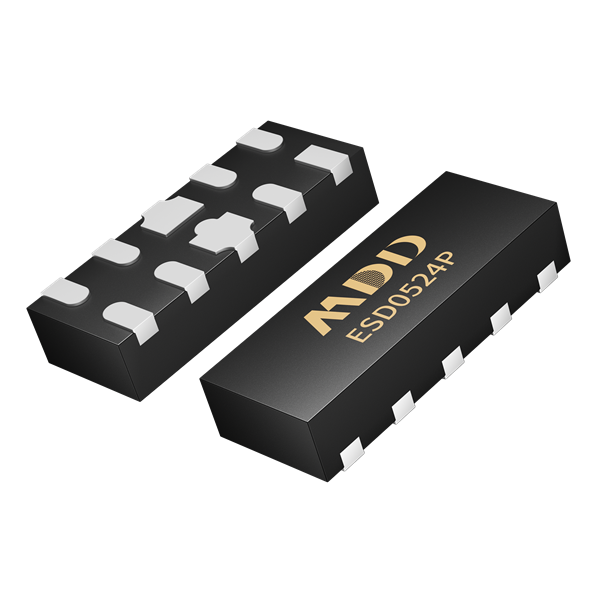

TVS DIODE 5VWM 12VC DFN2510-10L
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage5 V
Breakdown voltage6 V
Clamping voltage12 VMax
Peak pulse power60 W
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 3.5A (8/20µs) |
| Power Line Protection | Yes |
| Power - Peak Pulse | 60W |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| AC and DC characteristics | |
| Capacitance @ Frequency | 0.5pF @ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C |
| Package | Tape & Reel (TR) |
| Package / Case | 10-UFDFN |
| Supplier Device Package | DFN2510-10L |
| Other | |
| Applications | DVI, HDMI |
| Mfr | MDD |
| Product Status | Active |
| Series | DFN2510 |
| Type | Steering (Rail to Rail) |
