Espressif SystemsChina

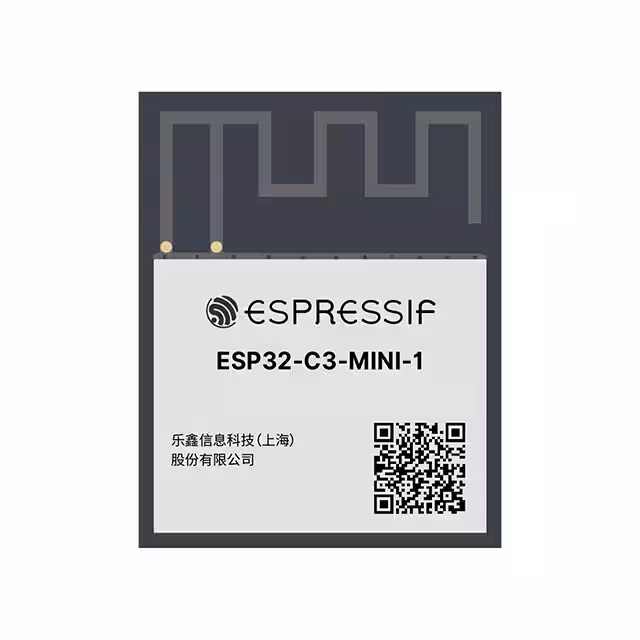

ESP32-C3-MINI-1-H4-ES
RF Transceiver Modules and ModemsSMD MODULE, ESP32-C3FH4, PCB ANT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 84mA |
| Current - Transmitting | 350mA |
| Power - Output | 20.5dBm |
| Voltage - Supply | 3V ~ 3.6V |
| AC and DC characteristics | |
| Frequency | 2.412GHz ~ 2.484GHz |
| Environment and package | |
| Memory Size | 4MB Flash, 384kB ROM, 400kB SRAM |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C |
| Package | Bulk |
| Package / Case | Module |
| Other | |
| Antenna Type | PCB Trace |
| Data Rate | 2Mbps |
| Mfr | Espressif Systems |
| Modulation | - |
| Product Status | Discontinued at Digi-Key |
| Protocol | 802.11b/g/n, Bluetooth v5.0 |
| RF Family/Standard | Bluetooth, WiFi |
| Sensitivity | -98dBm |
| Serial Interfaces | GPIO, I²C, I²S, SPI, UART |
| Series | ESP32-C3 |
| Utilized IC / Part | ESP32-C3FH4 |
