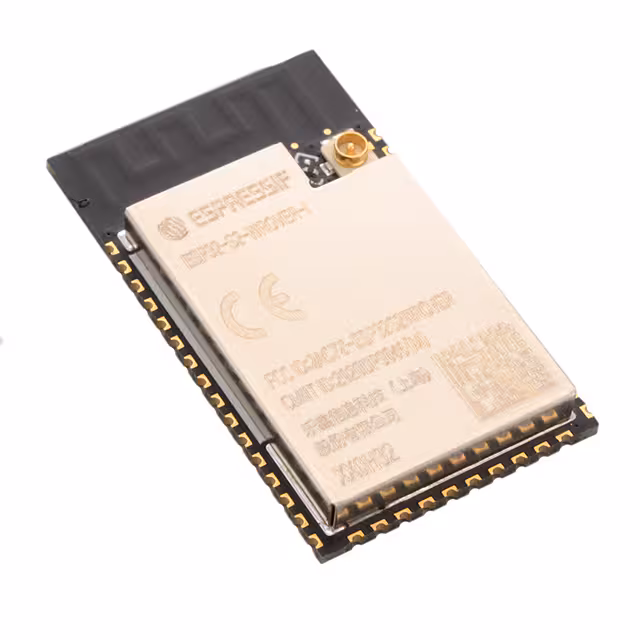

Espressif SystemsChina
RX TXRX MOD WIFI SURFACE MOUNT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 63mA ~ 68mA |
| Current - Transmitting | 160mA ~ 310mA |
| Power - Output | 19.5dBm |
| Voltage - Supply | 2.8V ~ 3.6V |
| AC and DC characteristics | |
| Frequency | 2.4GHz |
| Environment and package | |
| Memory Size | 4MB Flash, 2MB PSRAM |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Cut Tape (CT); Digi-Reel® |
| Package / Case | 56-VFQFN Exposed Pad |
| Other | |
| Antenna Type | Antenna Not Included |
| Base Product Number | ESP32-S2 |
| Data Rate | 150Mbps |
| Mfr | Espressif Systems |
| Modulation | - |
| Product Status | Not For New Designs |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -97dBm |
| Serial Interfaces | ADC, I²C, I²S, SPI, PWM, UART |
| Series | ESP32 |
| Utilized IC / Part | ESP32-S2 |
