Espressif SystemsChina

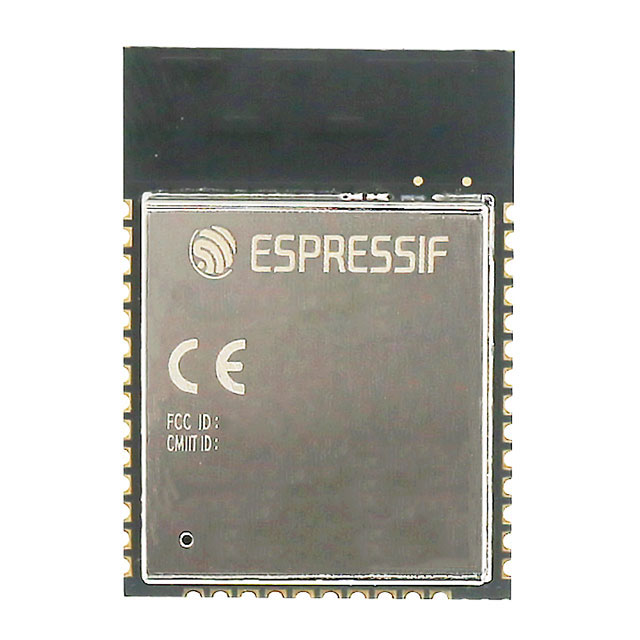

RF TXRX MODULE BT TRACE ANT SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | - |
| Current - Transmitting | - |
| Power - Output | 20dBm |
| Voltage - Supply | 3V ~ 3.6V |
| AC and DC characteristics | |
| Frequency | 2.4GHz ~ 2.5GHz |
| Environment and package | |
| Memory Size | 4MB Flash, 448kB ROM, 536kB SRAM |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 38-SMD Module |
| Other | |
| Antenna Type | Integrated, Trace |
| Base Product Number | ESP32 |
| Data Rate | 150Mbps |
| DigiKey Programmable | Not Verified |
| Mfr | Espressif Systems |
| Modulation | CCK, DSSS, OFDM |
| Product Status | Active |
| Protocol | 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 |
| RF Family/Standard | Bluetooth, WiFi |
| Sensitivity | -98dBm |
| Serial Interfaces | ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART |
| Series | ESP32 |
| Utilized IC / Part | ESP32-D0WD-V3 |
