Triad MagneticsUnited States

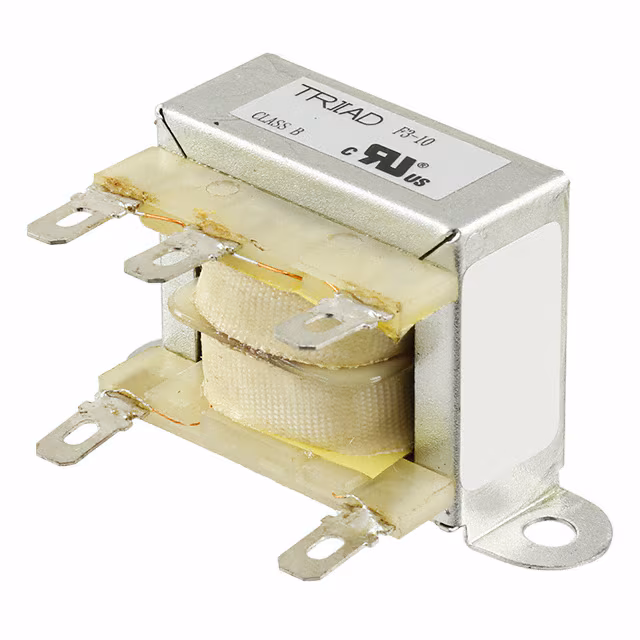

PWR XFMR LAMINATED 2.4VA CHAS MT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 250mA |
| Power - Max | 2.4VA |
| Voltage - Isolation | 2500VAC |
| Voltage - Primary | 115V |
| Voltage - Secondary (Full Load) | 10V |
| Environment and package | |
| Height - Seated (Max) | 30.15mm |
| Mounting Type | Chassis Mount |
| Package | Bulk |
| Size / Dimension | 52.37mm L x 44.45mm W |
| Other | |
| Center Tap | Yes |
| Mfr | Triad Magnetics |
| Primary Winding(s) | Single |
| Product Status | Active |
| Secondary Winding(s) | Single |
| Series | Quick Pack |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Weight | 0.25 lb (113.4 g) |
