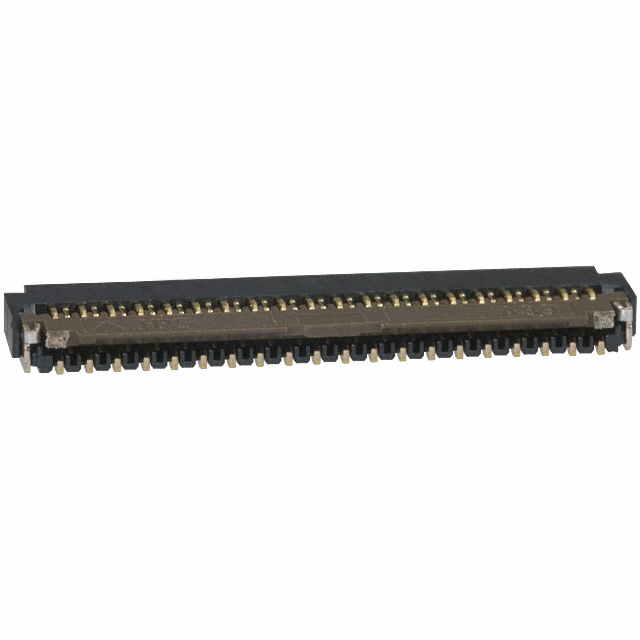

FH26-39S-0.3SHW(10)
Hirose Electric Co LtdJapan

FH26-39S-0.3SHW(10)

ObsoleteFFC, FPC (Flat Flexible) Connector Assemblies

CONN FPC BOTTOM 39POS 0.3MM R/A

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Positions39
Pitch300 µm
Current rating200 mAMax
Power
Current Rating (Amps)0.2A
Voltage Rating30V
Environment and package
Height Above Board0.039" (1.00mm)
Mounting TypeSurface Mount, Right Angle
Operating Temperature-55°C ~ 85°C
PackageTape & Reel (TR)
Other
Actuator ColorBrown
Actuator MaterialPolyamide (PA), Nylon
Cable End TypeTapered
Connector/Contact TypeContacts, Bottom
Contact FinishGold
Contact Finish Thickness-
Contact MaterialPhosphor Bronze
FeaturesZero Insertion Force (ZIF)
FFC, FCB Thickness0.20mm
Flat Flex TypeFPC
Housing ColorBlack
Housing MaterialLiquid Crystal Polymer (LCP)
Locking FeatureFlip Lock
Material Flammability RatingUL94 V-0
Mating Cycles10
MfrHirose Electric Co Ltd
Number of Positions39
Pitch0.012" (0.30mm)
Product StatusObsolete
SeriesFH26
TerminationSolder

Documents

No documents are linked to this part yet.
