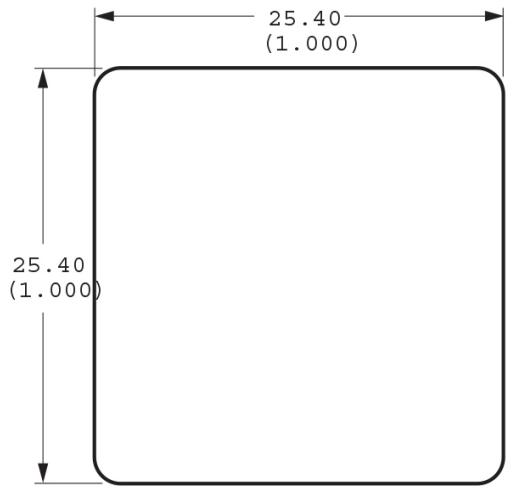

Top View
OmniOn PowerUnited States
EMI FILTER MODULE 75VDC 5A TH
OmniOn Power FLTR75V05Z power line filter module, max input voltage 75 Vdc, max current 5 A, 25.4 mm x 25.4 mm x 10.2 mm package, RoHS compliant with VDE/CE certification, designed to suppress common-mode and differential-mode noise in high-frequency switching power supplies.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Datasheet-verified parameters
12 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Package | 25.4 mm x 25.4 mm x 10.2 mm (1.0 in. x 1.0 in. x 0.4 in.) | |
| Operating Case Temperature | -40 °C to +100 °C | |
| RoHS | Compliant to RoHS Directive 2011/65/EU and amended Directive (EU) 2015/863 | |
| Input Voltage: Continuous | Max 75 Vdc | |
| Input Voltage: Transient (100 ms) | Max 100 V | |
| Maximum Current | 5 A |
All parameters (8)
| Power | |
|---|---|
| Input Voltage: Continuous | 75 Vdc (Max) |
| Maximum Average Current (TA=75°C, natural convection) | 3.3 A (Max) |
| Maximum Average Current (TA=92°C, 2.0 m/s (400 lfm) air) | 5 A (Max) |
| Environment and package | |
| Operating Case Temperature | 100 °C (Max) |
| Storage Temperature | -55 to 125 °C |
| Other | |
| Common-mode Insertion Loss (50 Ω circuit, 500 kHz) | 37 dB (Typ) |
| Differential - mode Insertion Loss (50 Ω circuit, 500 kHz) | 43 dB (Typ) |
| Resistance per Leg | 20 mΩ (Max) |
Pinout and package
Package25.4 mm x 25.4 mm x 10.2 mm (1.0 in. x 1.0 in. x 0.4 in.)
| Pin | Name | Function | Source |
|---|---|---|---|
| 1 | VI | (-) Input Negative | |
| 2 | Vo (-) Output Negative | ||
| 3 | GND | Ground | |
| 4 | VI | (+) Input Positive | |
| 5 | Vo (+) Output Positive |
