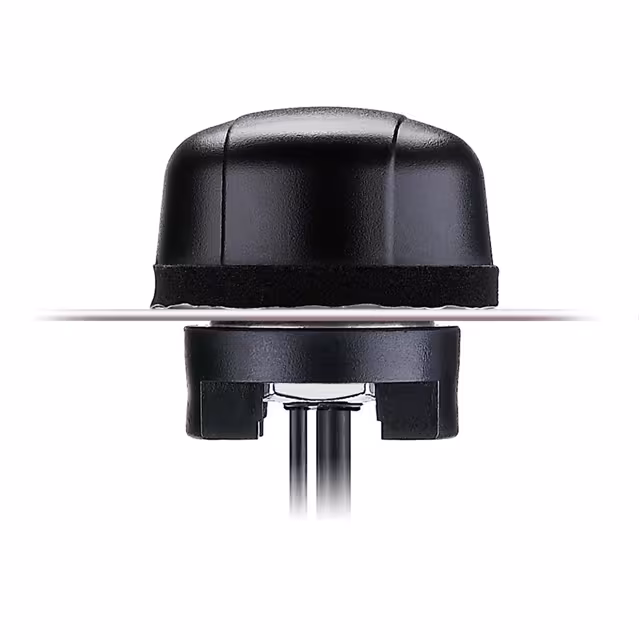

FMA103.A.AF.001
Taoglas LimitedIreland

FMA103.A.AF.001

ObsoleteRF Antennas

2 IN 1 PERMANENT MOUNT GPS (1M R

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Power - Max10 W
AC and DC characteristics
Frequency (Center/Band)860MHz, 920MHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz
Frequency GroupWide Band
Frequency Range824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz
Gain0.1dBi, 1.6dBi, -1dBi, 0.1dBi, 0.6dBi, -0.9dBi
Environment and package
Height (Max)1.142" (29.00mm)
Mounting TypePanel Mount
PackageBag
Other
Antenna TypeDome
ApplicationsGLONASS, GPS
Base Product NumberFMA103
FeaturesCable - 3m, LNA
Ingress ProtectionIP67, IP69K
MfrTaoglas Limited
Number of Bands6
Product StatusObsolete
Return Loss-13dB, -11dB, -21dB, -21dB, -19dB
RF Family/StandardNavigation
Series-
TerminationSMA Male
VSWR2, 3.5

Documents

No documents are linked to this part yet.
