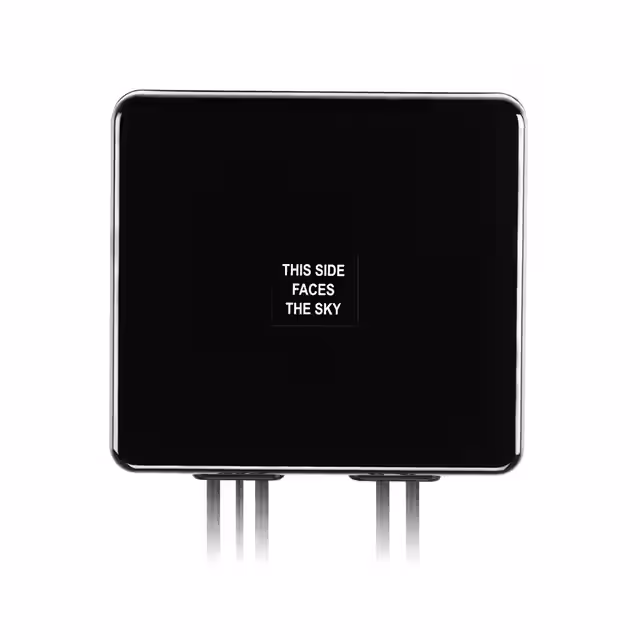

FMA959.A.LBFCG.001
Taoglas LimitedIreland

FMA959.A.LBFCG.001

ObsoleteRF Antennas

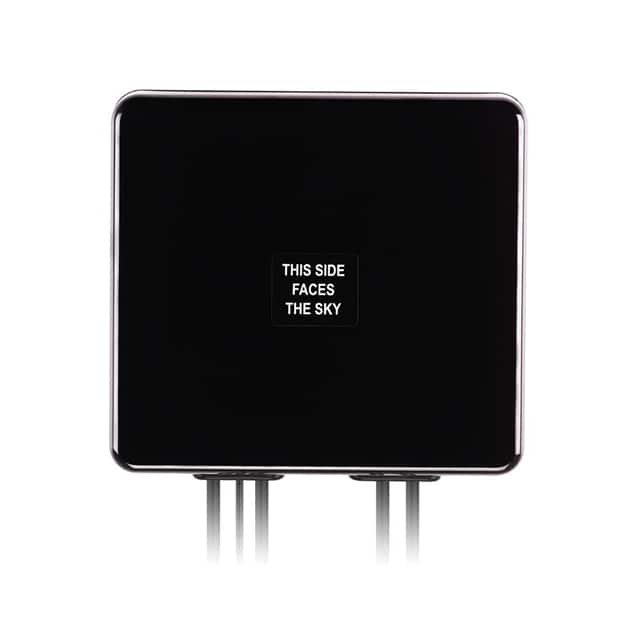

FMA959 5IN1 ADHESIVE MOUNT ANTEN

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

AC and DC characteristics
Frequency (Center/Band)750.5MHz, 869MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz
Frequency GroupWide Band
Frequency Range698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 4.9GHz ~ 5.85GHz
Gain3.18dBi, 3.6dBi, 2.14dBi, 3.01dBi, 1.98dBi, 3dBi, 3.98dBi, 4.37dBi, 4.37dBi, 1.35dBi, 3.7dBi, 4.49dB
Environment and package
Height (Max)0.787" (20.00mm)
Mounting TypeSurface Mount
PackageBox
Other
Antenna TypeModule
ApplicationsBeidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi
Base Product NumberFMA959
FeaturesCable - 1m, LNA, Filter
Ingress ProtectionIP67
MfrTaoglas Limited
Number of Bands13
Product StatusObsolete
Return Loss10dB
RF Family/StandardCellular, Navigation, WiFi
Series-
TerminationRP-SMA Male, SMA Male
VSWR2, 3
