FR304

Diodes - Rectifiers - SingleDO-201AD

RECTIFIER DIODE 400V 3A DO-201AD

MCC FR304 3A 400V fast recovery rectifier diode, DO-201AD package, operating temperature -55°C to +150°C, RoHS compliant.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Reverse voltage400 V
Average rectified current3 A$T_A = 55°C$
Forward voltage1.3 VMax · $I_{FM} = 3.0A，T_A = 25°C$
TypeFast recovery

Datasheet-verified parameters

16 items
ParameterValue and test conditionsSource
Average Forward Current3 A @ $T_A = 55°C$
Maximum Recurrent Peak Reverse Voltage400V
Maximum DC Blocking Voltage400V
Maximum Instantaneous Forward Voltage1.3V @ $I_{FM} = 3.0A; T_A = 25°C$
Peak Forward Surge Current150A @ 8.3ms, half sine
Maximum Reverse Recovery Time150ns @ $I_F=0.5A, I_R=1.0A, I_{rr}=0.25A$ (FR301-304)
Maximum DC Reverse Current At Rated DC Blocking Voltage10μA @ $T_A = 25°C$; 150μA @ $T_A = 55°C$
Typical Junction Capacitance65pF @ 1.0MHz, $V_R=4.0V$
Operating Temperature-55°C to +150°C
Storage Temperature-55°C to +150°C
PackageDO-201AD
Diode TypeFast Recovery Rectifier
RoHS CompliantCompliant (Lead Free Finish)
Halogen FreeAvailable upon request by adding suffix '-HF'
Flammability RatingUL 94 V-0
Moisture Sensitivity LevelLevel 1
All parameters (9)ExpandCollapse
Power
Average Forward Current3 A
Maximum DC Blocking Voltage400V
Maximum Instantaneous Forward Voltage1.3V
Maximum Recurrent Peak Reverse Voltage400V
Maximum RMS Voltage280V
Peak Forward Surge Current150A
Environment and package
Operating Temperature-55°C to +150°C
PackageDO-201AD
Other
Maximum Reverse Recovery Time150ns

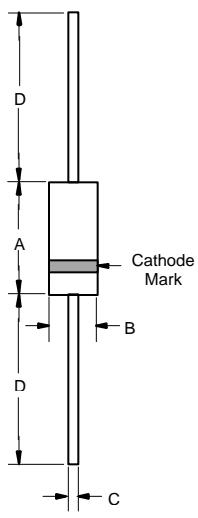

Pinout and package

PackageDO-201AD

PinNameFunctionSource
ACathode Mark
BPin B
CPin C
DPin D

Documents

DatasheetDatasheet · 464.9 KB · 2026-10-29
Open document center

Datasheet-verified content is extracted by AI from the manufacturer datasheet. Click a page number to view the original.
