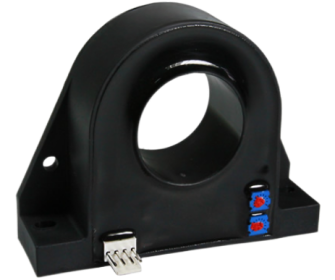

Using Hall effect and open-loop measurement principle, after TRMS calculation, the measured current is converted into DC current or voltage output proportional to the primary current, and the current sensor can measure DC, AC, pulse and various irregular waveforms of current under the condition of electrical isolation. It has the characteristics of high accuracy, high linearity, high integration, small size, simple structure and long-term stability.
All alternatives
View full reportTechnical parameters
| E L | 线性度 Linearity | < 0.5 | %FS |
| f | 频带宽度(-3 dB ) Frequency bandwidth(-3dB) | D C ,20 ～ 6000 | Hz |
| IpN | 原边额定输入电流 Primary nominal input current | 100 | 200 | 300 | 400 | 500 | 600 | 1000 | A |
| lc | 电流消耗 Current consumption | Ve=+24V <30 | mA |
| lp | 原边电流测量范围 Measuring range ofprimary current | 0~±150 | 0~±300 | 0~±450 | 0~±600 | 0~±750 | 0~±900 | 0~±1200 | A |
| m | 质量(约) Quality (approx.) | 248 | g |
| RL | 负载电阻 Load resistance | ≥10K | Ω |
| TA | 工作环境温度 Ambient operating temperature | -25 ～ +85 | ℃ |
| Tr | 响应时间 Response time | <150 | ms |
| Ts | 贮存环境温度 Ambient storage temperature | -40 ～ +100 | ℃ |
| Va | 绝缘电压 Insulation voltage | 在原边与副边电路之间 5kV 有效值 /50Hz/1 分钟 5kV RMS /50Hz/1 min between primary and secondary side circuits |
| Vo | 电源电压 Supply voltage | +20 ～ +32(±5%) | V |
| Vom | 磁失调电压 Residual voltage | I→0 <±25 | mV |
| Vor | 失调电压温漂 Thermal drift of V0 | Ip=0 TA=-25 ～ +85℃ <±1 | mV/℃ |
| Vour | 副边额定输出电压 Rated output voltage of secondary side | 10±1% 或 5±1% | V |
