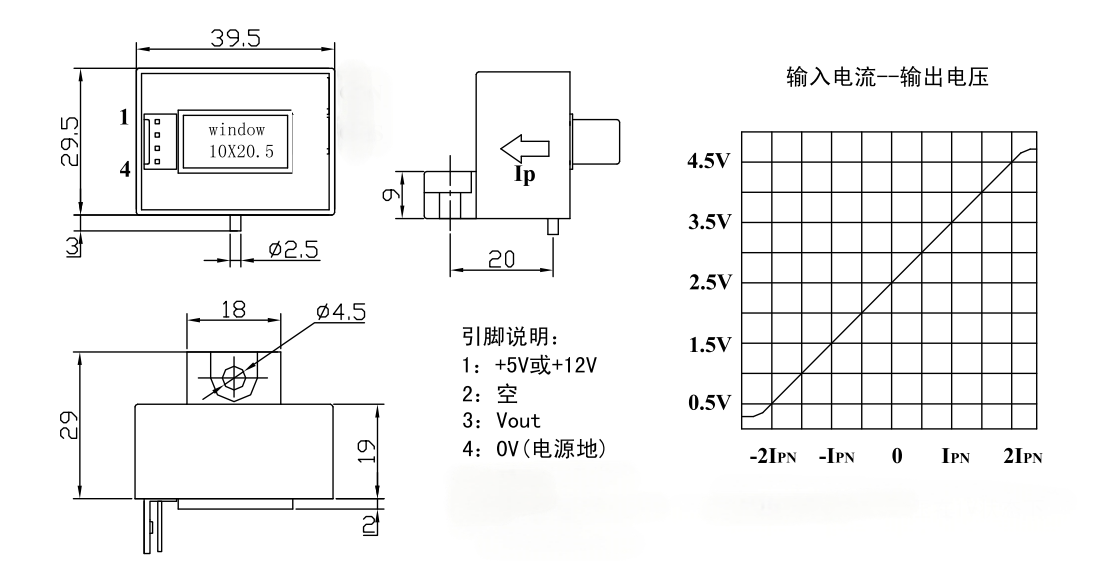

View full reportTechnical parameters
| f | 频带宽度 (-3dB) Frequency bandwidth(-3dB) | DC～20 | kHz |
| Ic | 电流消耗 Current consumption | 20 | mA |
| Ip | 原边电流测量范围 Measuring range of primary current | 0 ~ ±100 | 0 ~ ±200 | 0 ~ ±400 | 0 ~ ±600 | 0 ~ ±800 | 0 ~ ±900 | 0 ~ ±900 | A |
| I PN | 原边额定输入电流 Primary nominal input current | 50 | 100 | 200 | 300 | 400 | 500 | 600 | A |
| R L | 负载电阻 Load resistance | ≥10K | Ω |
| T A | 工作环境温度 Ambient operating temperature | -40～+ 85 | ℃ |
| Tr | 响应时间 Response time | ≤3 | μs |
| T S | 贮存环境温度 Ambient storage temperature | -40～+ 125 | ℃ |
| Va | 绝缘电压 Insulation voltage | 在原边与副边电路之间 2.5KV有效值/50 Hz/1分钟 |
| Vc | 电源电压 Supply voltage | +5V/+12V | V |
| Vo | 零点失调电压 Offset voltage | TA=25C 2.5V±1%/(输出为VCC 1/2) | V |
| V OM | 磁失调电压 Residual voltage | IPN→0 <±20 | mV |
| V OT | 失调电压温漂 Thermal drift of V0 | Ip=0 TA=-25～+85℃ <±1 | mV/℃ |
| V OUT | 副边额定输出电压 Nominal output voltage | ±1(±1%)或±2(±1%) | V |
| εL | 线性度 Linearity | ±1 | %FS |
