onsemiUnited States

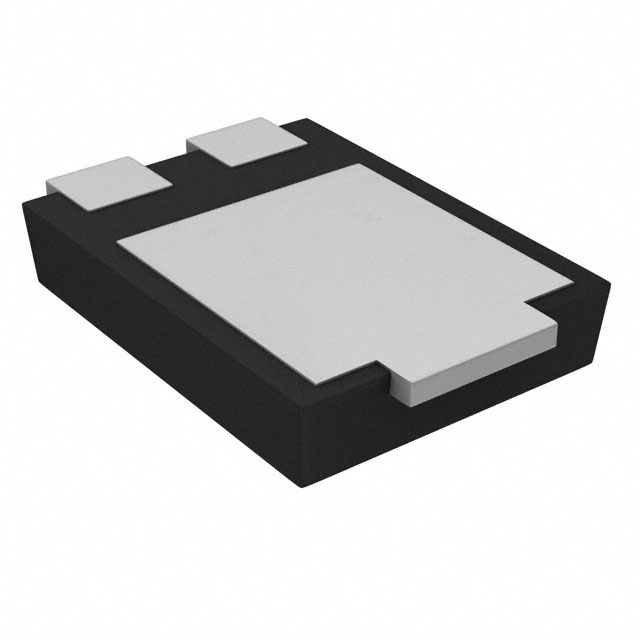

DIODE GEN PURP 600V 8A TO277-3
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage600 V
Average rectified current8 A
Forward voltage1.1 VMax · 8 A
TypeStandardStandard Recovery >500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 8A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 8 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277-3 |
| Other | |
| Base Product Number | FS8J |
| Capacitance @ Vr, F | 118pF @ 0V, 1MHz |
| Diode Type | Standard |
| Mfr | onsemi |
| Product Status | Active |
| Reverse Recovery Time (trr) | 3.37 µs |
| Series | Automotive, AEC-Q101 |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
