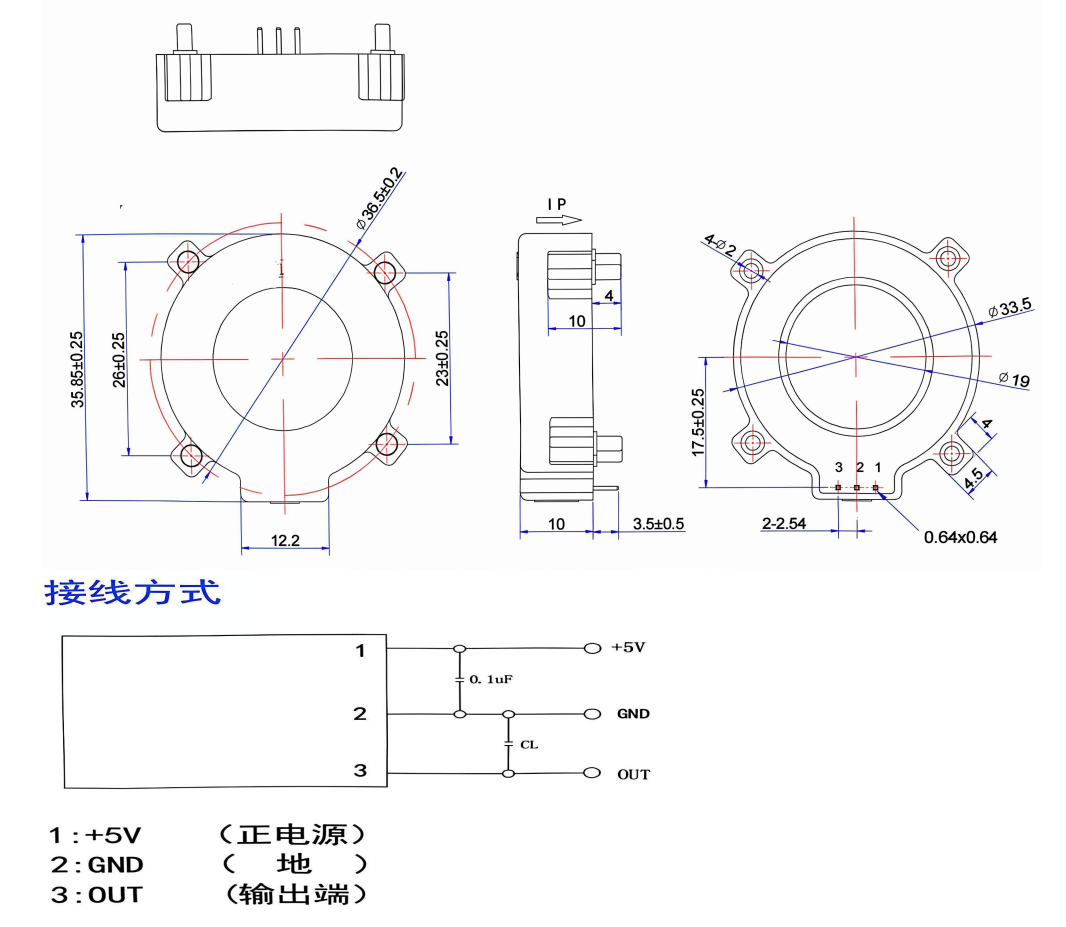

View full reportTechnical parameters
| Ɛ L | 线性度 Linearity | ≤0. 5 | %FS |
| f | 频带宽度 (-3dB) Frequency bandwidth(-3dB) | DC～ 50 | kHz |
| I C | 电流消耗 Current consumption | <20 | mA |
| I P | 原边电流测量范围 Measuring range of primary current | 0 ～ ± 36 | 0 ～ ±120 | 0 ～ ±240 | 0 ～ ±480 | 0 ～ ±600 | 0 ～ ±720 | A |
| I PN | 原边额定输入电流 Primary nominal input current | 30 | 100 | 200 | 400 | 500 | 600 | A |
| R L | 负载电阻 Load resistance | ≥10K | Ω |
| T A | 工作环境温度 Ambient operating temperature | -40～+125 | ℃ |
| T R | 响应时间 Response time | ≤5 | μs |
| T S | 贮存环境温度 Ambient storage temperature | -40～+150 | ℃ |
| V C | 电源电压 Supply voltage | +5 VDC (±5%） | V |
| V d | 绝缘电压 Insulation voltage | 在原边与副边电路之间 2.5 KV有效值/50Hz/1分钟 |
| V O | 零点失调电压 Zero offset voltage | T A =25℃ 2.5±0.015 | V |
| V OM | 磁失调电压 Residual voltage | I PN →0 <±10 | mV |
| V OT | 失调电压 温漂 Thermal drift of V0 | I p =0 T A =-25～+85℃ <±0.5 | mV/℃ |
| V SN | 副边额定输出电压 Secondary nominal output voltage | 2.5±2 | V |
