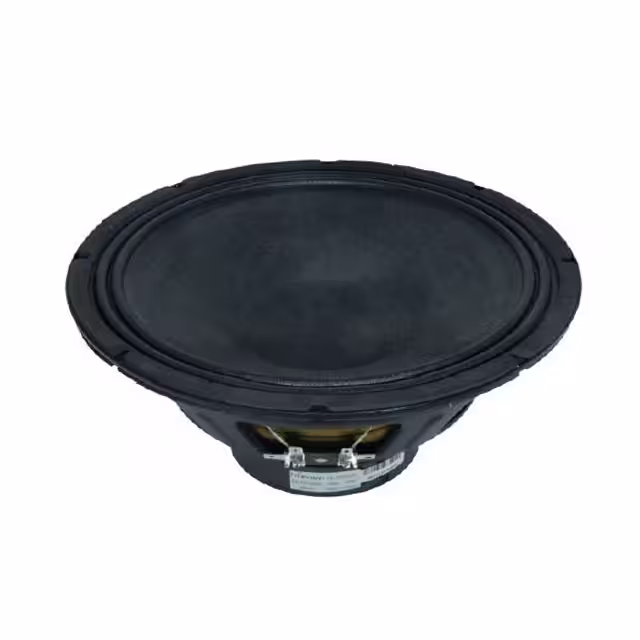

FSL-1015R02-08M
Peerless by TymphanyUnited States

FSL-1015R02-08M

ActiveSpeakers

PRO 10" WOOFER, 1.5INCH VOICE CO

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Power - Rated150 W
AC and DC characteristics
Frequency Range70 Hz ~ 700 Hz
Frequency - Self Resonant68.41Hz
Impedance7.01 Ohms
Environment and package
Height - Seated (Max)0.272" (6.90mm)
PackageBulk
Size / Dimension10.122" Dia (257.10mm)
Other
Efficiency - dBA94.10
Efficiency - Testing1W/1M
Efficiency - TypeHalf Space Sensitivity
Ingress Protection-
Material - ConePaper
Material - MagnetFerrite
MfrPeerless by Tymphany
Port LocationTop
Product StatusActive
Ratings-
SeriesFSL
ShapeRound
TechnologyMagnetic
TerminationSolder Eyelet(s)
TypeWoofer

Documents

No documents are linked to this part yet.
