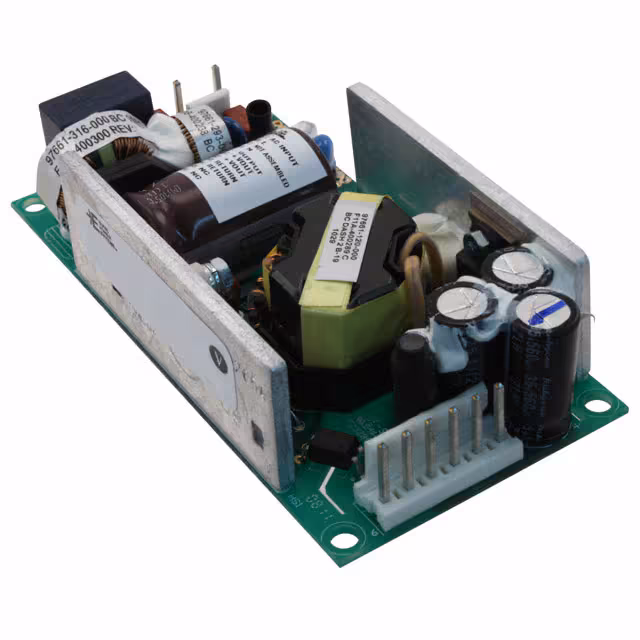

AC/DC CONVERTER 24V 40W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage100 ~ 240 V
Output voltage24 V
Output current1.6 AMax
Power40 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 1.6 A |
| Power (Watts) | 40W |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~70°C |
| Package | Box |
| Size / Dimension | 4.00" L x 2.00" W x 0.99" H (101.6mm x 50.8mm x 25.2mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE |
| Efficiency | 87% |
| Features | Universal Input |
| Mfr | Inventus Power |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | FTA040 (40W) |
| Type | Open Frame |
