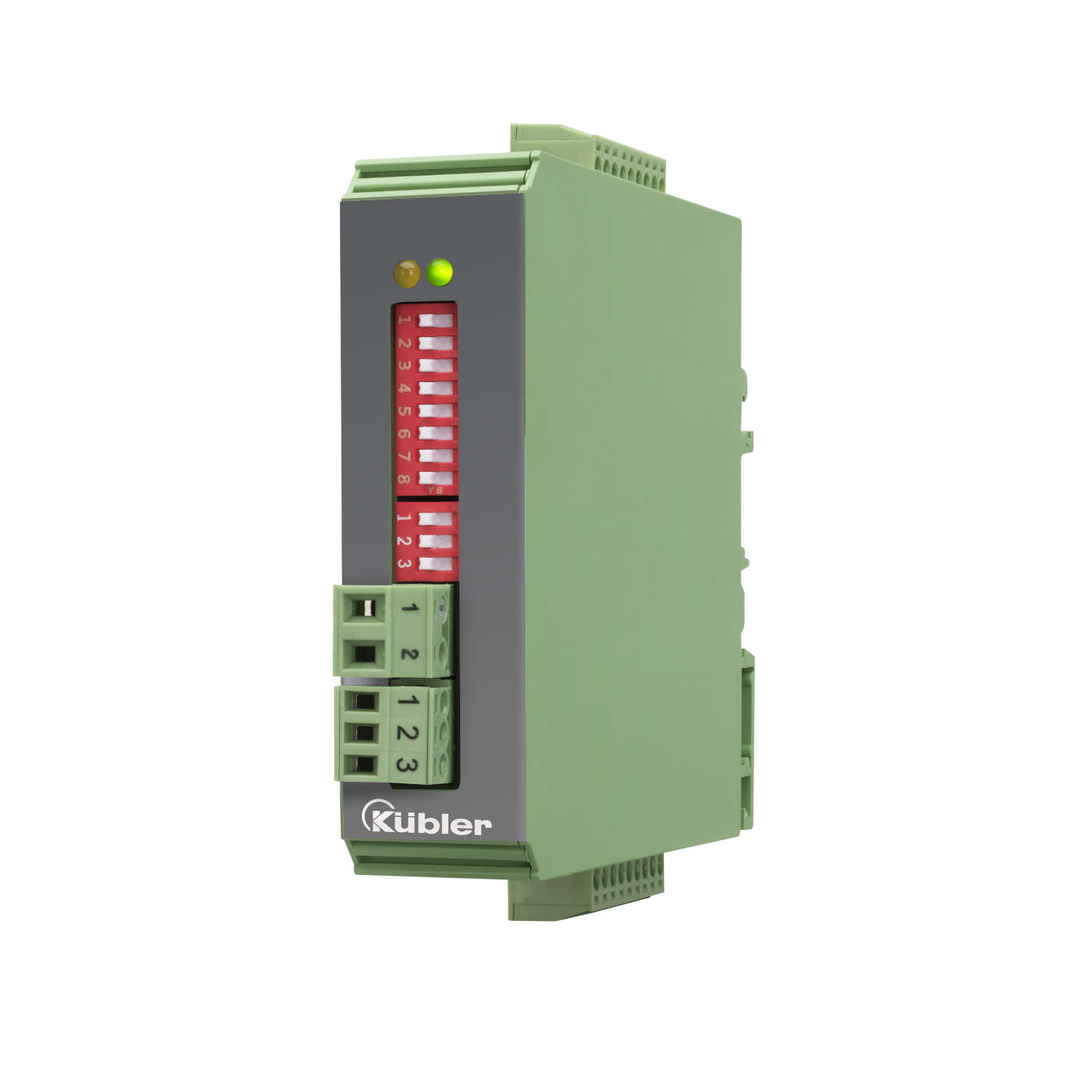

FT_1D-1D

Active

Frequency divider for error-free division of frequencies / pulses. TTL / RS422, HTL/Push-Pull

All alternatives

Power
Power supply	18...30 V DC
Environment and package
Dimension	40 mm x 79 mm x 91 mm
Working temperature	0 °C ... 45 °C
Other
Connection types	Screw terminals Sub-D connector
FT 1D-1D PDF ∼ 735,4 KB \| 09.2025	DE EN FR
FT 1D-1D PDF ∼ 826,6 KB \| 09.2025	DE EN FR
Input interfaces	HTL TTL / RS422
Inputs coding	A, B, 0 A, A\|, B, B\|, 0, 0\|
Output interfaces	HTL TTL / RS422
Outputs coding	A, B, 0 A, A\|, B, B\|, 0, 0\|
Protection level	IP20
