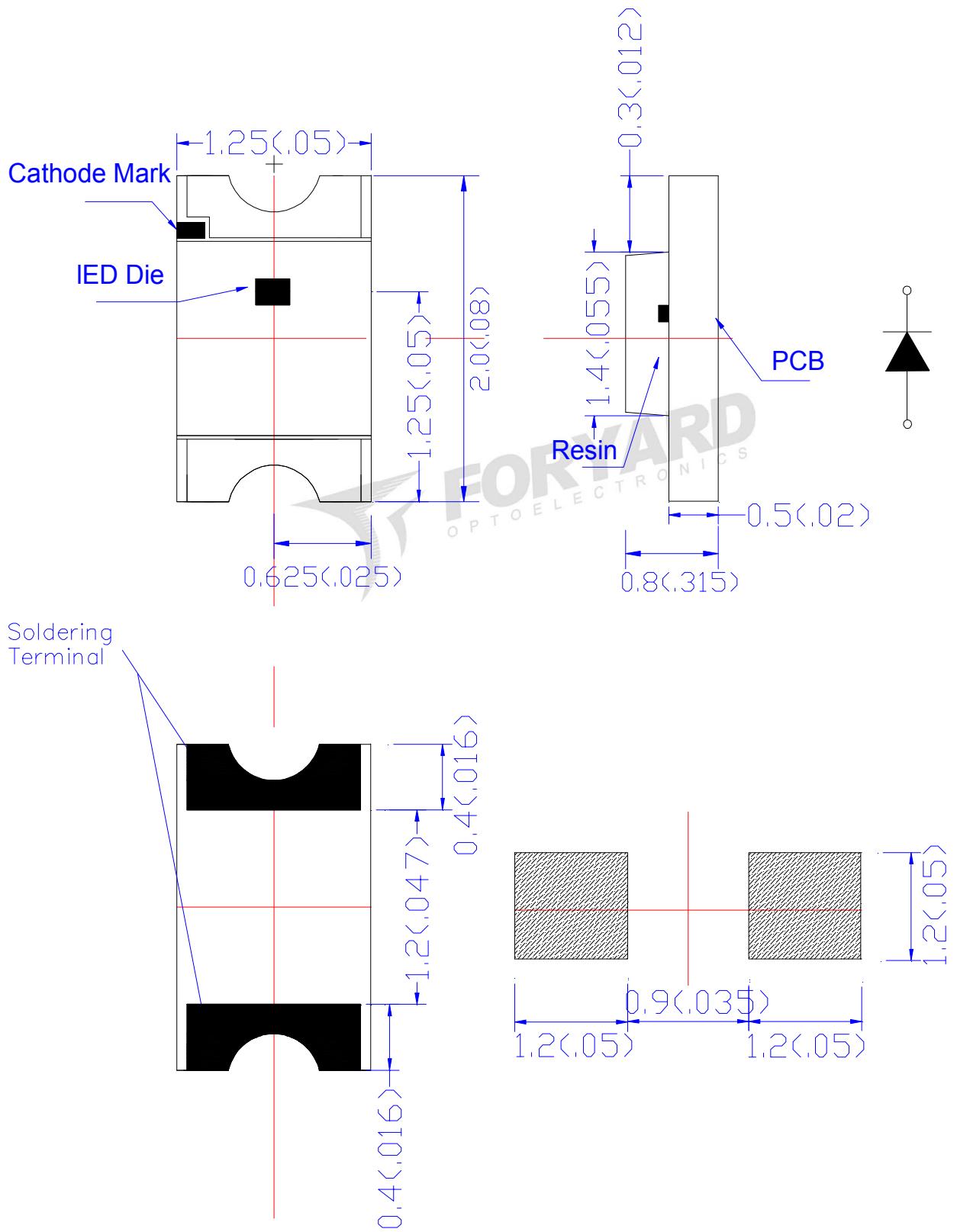

■ Mechanical Dimensions
LED SMD 0805 YELLOW GREEN 2.0V 20mA 40MCD
FYLS-0805UGC is a 0805 package yellow-green SMD LED with 30mA forward current, operating temperature -40°C~+85°C, RoHS compliant, suitable for indicators and backlighting.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Key specs
ColorYellow
Test current30 mATa=25oC)
Datasheet-verified parameters
10 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Emitting Color | Yellow Green | |
| Package | 0805 (2.0*1.25*0.8 mm) | |
| RoHS | Compliant | |
| Forward Current(DC) | 30 mA (Absolute Maximum Rating, Ta=25ºC) | |
| Peak Forward Current | 100 mA (Pulse width≦1msec duty≦1/10) | |
| Power Dissipation | 78 Mw (Absolute Maximum Rating, Ta=25ºC) |
All parameters (8)
| Power | |
|---|---|
| 50% Power Angle | 130 Deg (Typ) |
| Forward Current(DC) | 30 mA |
| Forward Voltage | 2.00 V (Typ) |
| Environment and package | |
| Operation Temperature | -40°C~+85°C |
| Size (mm) | 2.0*1.25*0.8 |
| Other | |
| Emitting Color | Yellow Green |
| Luminous Intensity | 40 mcd (Typ) |
| Peak Emission Wavelength | 568 nm (Typ) |
